Fiber Optical Cable Patch Panel Enclosure
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Fiber Optic Patch Panel Enclosure1, Competitive price2, fiber optic enclosure3, Good Repeatability4, fast delivery
Fiber Optic Enclosure -24 ports 2 in to 2 out
Fiber Optical Enclosure 1, We are the manufacture 2, Competitive price 3, Good quality 4, ISO9001: 2008 Certificate
Fiber Patch Panel provides optical distribution frame, rack mount fiber splice and distribution enclosure, termination box
Rack mounted &Rotate&Drawer style
Applications
1U Fiber patch panel series of optic distribution boxes, which are middle capacity and both side operation, are suitable for central offices onnection points in the OAN, data centers, local area network etc. Features1)Reliable fastening, Stripping and earthling devices for optic fiber. 2) Suitable for LC, LCD, SC, SCD, FC, LCQ, ST and STD adapter. 3) Fit for 19 rack4) Accessories make fiber avoid damaging. 5) Slide out design, easy to access the back. And splicer6) High-quality steel, beautiful appearance. 7) Maximum capacity; 48 fibers. 8) All material is RoHS compliant. Main performanceOptics performance1) Insert loss; 0.3dB 2) Return loss; 50dB (UPC)60dB (APC)3) Durability; 1000 Mating4) Wavelength; 850nm, 1310nm, 1550nmOperating condition1) Operating temperature; -25° C~+40° C2)Storage temperature; -25° C~+55° C3) Relative humidity; ≤ 85%(+30° C)4)Air pressure; 70Kpa~106KpaPaint & Color1) Color; RAL 70352) paint; Comply with ASTM

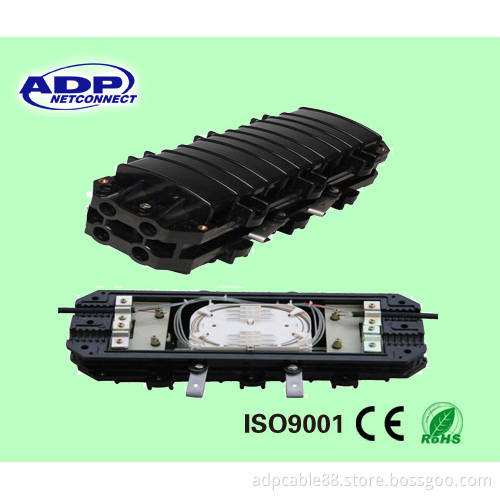

Splice Enclosure
Fiber Optical Enclosure
Optical Fiber Enclosure
Fiber Optical Enclosure
Operation conditions:
Temperatures: -40° C~+60° C
Humidity: ≤ 95% (at 40° C)
Air Pressure: 70kPa ~106kPa
Technical Specifications:
Seal performance: After the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.
Insulation resistance: The insulation resistance between the metal work piece and the earth is greater than 20kM.
Pressurization: There is no breakdown or flashover under 15kVdc/1min between the metal work piece and the earth.
The curvature radius of the fiber 40mm, without extra loss inside the splice tray.
It can bear the axial tensile strength no less than 1000N.
Lifetime: 25 years.
Fiber Optic Enclosure -24 ports 2 in to 2 out
Fiber Optical Enclosure 1, We are the manufacture 2, Competitive price 3, Good quality 4, ISO9001: 2008 Certificate
Fiber Patch Panel provides optical distribution frame, rack mount fiber splice and distribution enclosure, termination box
Rack mounted &Rotate&Drawer style
Applications
1U Fiber patch panel series of optic distribution boxes, which are middle capacity and both side operation, are suitable for central offices onnection points in the OAN, data centers, local area network etc. Features1)Reliable fastening, Stripping and earthling devices for optic fiber. 2) Suitable for LC, LCD, SC, SCD, FC, LCQ, ST and STD adapter. 3) Fit for 19 rack4) Accessories make fiber avoid damaging. 5) Slide out design, easy to access the back. And splicer6) High-quality steel, beautiful appearance. 7) Maximum capacity; 48 fibers. 8) All material is RoHS compliant. Main performanceOptics performance1) Insert loss; 0.3dB 2) Return loss; 50dB (UPC)60dB (APC)3) Durability; 1000 Mating4) Wavelength; 850nm, 1310nm, 1550nmOperating condition1) Operating temperature; -25° C~+40° C2)Storage temperature; -25° C~+55° C3) Relative humidity; ≤ 85%(+30° C)4)Air pressure; 70Kpa~106KpaPaint & Color1) Color; RAL 70352) paint; Comply with ASTM
Splice Enclosure
Fiber Optical Enclosure
Optical Fiber Enclosure
Fiber Optical Enclosure
Operation conditions:
Temperatures: -40° C~+60° C
Humidity: ≤ 95% (at 40° C)
Air Pressure: 70kPa ~106kPa
Technical Specifications:
Seal performance: After the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.
Insulation resistance: The insulation resistance between the metal work piece and the earth is greater than 20kM.
Pressurization: There is no breakdown or flashover under 15kVdc/1min between the metal work piece and the earth.
The curvature radius of the fiber 40mm, without extra loss inside the splice tray.
It can bear the axial tensile strength no less than 1000N.
Lifetime: 25 years.
