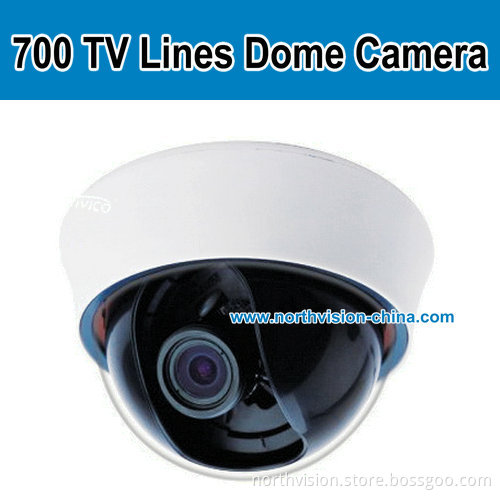

1/3 Sony Exview Had II CCD Dome Camera

Features:
1, New Generation CCD & DSP
2, 700 TV Lines in color
3, Super Head-Light supression
4, Digital Noise Reduction
5, OSD Menu



CCDImage Sensor 1/3" Sony Super HAD II CCD(960H)
Pixel NTSC: 976(H) X 508(V); PAL: 976(H) X 596(V)
Scanning System2: 1 Interlace
ELECTRICAL


Synchronization Internal / External Sync.
OSDYes
Video Output 1.1V p- p/ 75 Ω
Resolution650 TV Lines /700 TV Lines
S/N Ratio More than 50dB
Min. IlluminationColor: 0.5 Lux; B/W: 0.01Lux
Shutter SpeedAuto: 1/60-1/100, 000sec (NTSC); 1/50-1/120, 000sec (PAL)
Fixed: 1/50, 1/120, 1/250, 1/500, 1/1, 000, 1/2, 000, 1/4, 000, 1/10, 000sec

White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push Lock Selectable
ATW: 1080K-10500K
BLC BLC / HLS (Head-light Supression) Selectable
ATROn (Brightness, Contrast adjustable) / Off
Gain Control 6- 44.8 dB Adjustable(Manual Shutter, AGC)
2D-DNR On / Off
Motion DetectionOn / Off (4 Zone)
Privacy MaskingOn / Off (4 Zone)
Mirror On / Off
Day & Night Color / B&W / Auto Selectable
Image AdjustableBrightness / Contrast / Sharpness / Hue / Gain Adjustable
Lightning Proof Multi-level Lightning Proof
Power DC 12V
OTHERBuilt-in Lens 4mm / 6mm / 8mm / 12mm
3.5-8mm / 4-9mm/ 2.8-12mm
Operating Environment Te mp. -1 0to 50 / RH 95 % Max
Dimension 120mm(D)× 90mm(H)
Weight 0.5Kg
