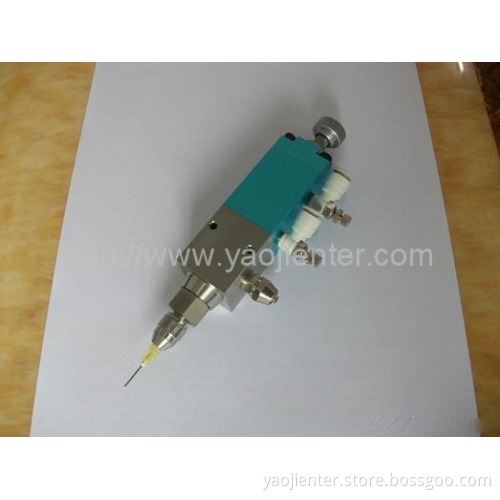

Dispensing Valve (Y7704)

1 The product overview
Back to the suction valve is composed of a cylinder body, a valve body and a material body and other components, use the plunger principle, with suction function, the settlement of the high viscosity medium continually glue, drawing etc.
2 Products application
Applicable to all industries products needed for lubrication, bonding, potting, sealing, perfusion, low viscosity dielectric filler.
Such as: Plastic products bonded quantitative dispensing
Waterproof sealing adhesive products
Electronic parts are fixed and dust-proof protection glue
Speaker, speaker, buzzer, audio, such as dispensing
3 Characteristics
1) With suction function, solve medium drawing;
2) The fluid contact part is made of corrosion resistant sealing ring;
3) Small volume, light weight, long service life, less maintenance repair;
4) Easy disassembly, easy cleaning, easy repair;
5) A discharge port can be connected with any dispensing needle;
4 Technical parameters
Type: Single / double action thimble
The use of air source: 4-7Kgf/cm
Gas cylinder: Single or double action cylinder ( optional)
Output: ≥ 0.01ml
Operating viscosity: 1-1.000.000cps
Body material: Aluminum alloy or stainless steel ( optional)
Feed pressure: ≤ 1Mpa ( 1Mpa 10kg/f )
Feed port: G1/8 "
Operating speed: <300/min
