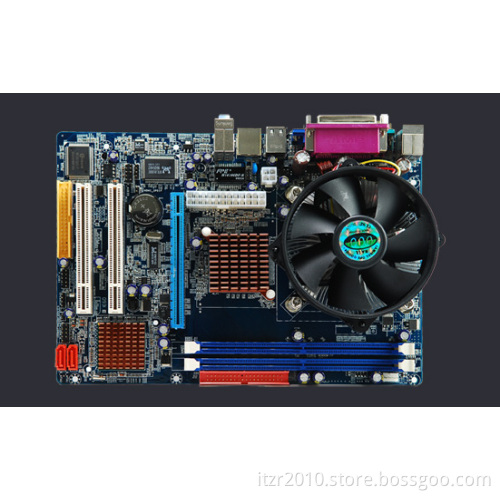

Esonic Mainboard Motherboard G31 With Xeon 3.2G CPU, All in One Combo

Processor Support Supports Intel XEON Core 2 Duo 1.8G-2.8G
(For the latest information about CPU, please check with manufacturer)
Supported FSB 1333/1066/MHz

Chipset North Bridge: Intel G41 Chipset
South Bridge: Intel ICH7 Chipset
Memory Support DDR2 533/667/800/1066/1333 SDRAM (4GB Max)
2 DDR3 DIMMs (240 pin/ 1.8V)
(For more information on compatible components, please check with manufacturer)
LAN Supports Realtek 8100C or 8102E 10/100 Mbps
Supports Realtek 8111C/8110SC 10/100/1000 Mbps
Compliance with PCI 2.2
Supports ACPI Power Management
Audio Chip integrated by Realtek 655 Flexible 6-channel
Audio with jack sensing Compliant with Vista Premium
IDE 1 IDE port by ICH7 Supports Ultra DMA 66/100 mode
Supports PIO, Bus Master operation mode
STAT 2 SATA II ports by ICH7
Supports 2 SATA II devices
Supports storage and data transfers at up to 3GB/s
Floppy 1 floppy port Supports 1 FDD with 360KB, 720KB,
1.2MB, 1.44MB and 2.88 MB
Back panel 1 PS/2 mouse port 1 PS/2 keyboard port
1 serial port (COM1) 1 VGA port
1 parallel port supporting SPP/EPP/ECP mode
2 USB 2.0 Ports 1 LAN jack 3 flexible audio jacks
On-Board Pinheaders / Connectors 2 USB 2.0 pinheaders 1 CD-In connector
1 Front Panel Audio pinheader
Slots 1 PCI Express x16 slot 2 PCI slots
Support 3.3V / 5V PCI bus Interface
Form Factor Micro-ATX (24cm X 16.8 cm)
Mounting 6 mounting holes
