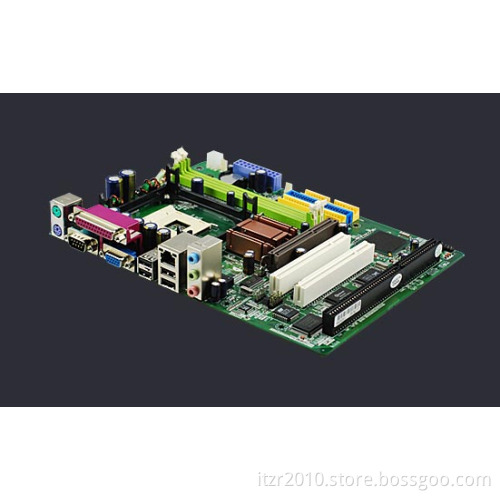

Motherboard Intel 845gv Support Isa Slot

CPU Support Intel Socket 478 Pentium 4 processor
Support Intel Socket 478 Celeron processor
400/533MHz Intel NetBurst micro-architecture bus
Hyper-Threading Technology supported
Support Intel Socket 478 Celeron-D processor
Intel 845GV + ICH4 chipsets
Winbond 83627HF LCP controller
Dual channel DDR Configuration consist of two DDR DIMM sockets
Support DDR200/266/333 DIMMs up to 2GB
VGA Integrated Graphics controller in 845GV GMCH
Support 3D/2D enhancements
Support AGP4X slot. Max
Hardware Monitoring Built in Winbond W83627HF monitors system/CPU temperature and voltage status
Audio
ICH4 AC-Link with AC97 2.2 compliant
Line-In, Line-Out and MIC port
USB 2.0 Onboard USB 2.0 controller in ICH4
Support Hi-speed, Full-speed and Low-speed data transfer rate. Max. Bandwidth 480Mbits/s
L Four downstream USB 2.0 ports
LAN Onboard RTL8100C (10/100MB)
PCI to ISA Bridge:
Winbond 83628, Winbond 83629
IDE Interface Two enhanced PCI IDE channels which support up to 4 IDE devices supports ATA-100, data transfer rate up to 100MB/sec
LPC IO Support One EPP/ECP parallel port
Support One COM port
Built-in FDC supports 1.2M/1.44M/2.88M FDD
PS/2 mouse and keyboard connectors
IrDA/FIR supported
System BIOS Award BIOS with 4MB Firmware Hub
ACPI/Plug and Play supported
Expansion Slots 1 AGP4X slot
2 PCI slots
1 ISA slots
Form Factor Micro-ATX 250mm*180mm
