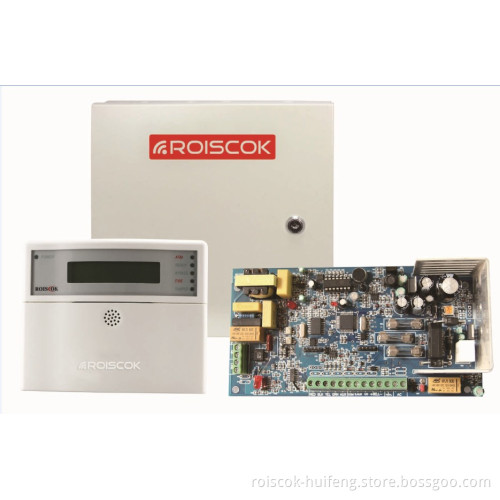

Multi-Zone Control Panel, Suitable for Supermarket and Warehouse (RP248CN)

Multi-zone control panel, suitable for supermarket and warehouse (RP248CN)
Functional, so that security to the more simple
RP248CN equipped with the most popular LCD keyboard (Chinese, English optional), 8-72 programmable zones, wired zones can be expanded zone, compatible with internationally popular
Communication; Products, functional, installation, programming, use very convenient. Free to write any address information, the factory setting values, can greatly reduce the limits of the installation, programming, operating time.
Main Features
1. 8-72 programmable zones
2. Control Keyboard with LCD
3. Can connect up to 16 control operation of the keyboard at the same time host, programming
4. Can be divided into eight regional independent fabric / disarm
5. 8 wired zones can be added, 16 wired zones, expansion module
6. Can add 4-way programmable output module (output current 3A)
7. Zone terminal characteristics: Normally closed, normally open, single termination resistor
8. Keyboard comes with three emergency zone (button): Robbery police [1] + [2], fire [4] + [5], medical alarm [7] + [8]
9. LED display alarm, power supply, deployment, disarm, fire, isolation, anti-demolition
10. System fault indication
11. Stress Code Alarm
12. Built-bell function
13. Comes all the way relay output
14. A clock, power-down without losing programming parameters and host state information
15. 8 group to follow the phone, Group 3 Alarm Center Tel
16. Built-in digital communications device, compatible with international standard Contact ID, 4 +2
17. Built-charging circuit, extended battery life
18. Keyboard backlight Tips
19. Keyboard Anti-cut / split
20. Automatic day deployment
21. Automatic test report to the alarm center
22. 128 event log
23. 31 group of 4 or 6 classification code
24. Communication between the host and the module is greater than
500 meters away
Specification
Motherboard RP248MB
1. Input power: 16.5VAC 25VA(via transformer)
2. Backup battery: DC12V4Ah, or DC12V7h
3. Auxiliary power supply: 12VDC, 400mA maximum
4. Alarm port ouput: 12VDC, 750mA maximum
5. Programmable output: Open collector output, maximum 70mA
6. Switch lock zone output: 250mA
7. Loop response time: 500Ms
8. Fuse AUX: Auxiliary power supply 105A
9. Fuse BELL: Warning 1A
10. Fuse BAT: Battery 2A
11. Board Size: Weight: 201*100*65mm/258g
Keyboard RP248KCL
1. Normal power consumption: 90mA, maximum 130mA
2. Connect the keyboard and motherboard
3. Maximum distance: 4-wire 300M
4. Size: 110*130*25mm/225g
