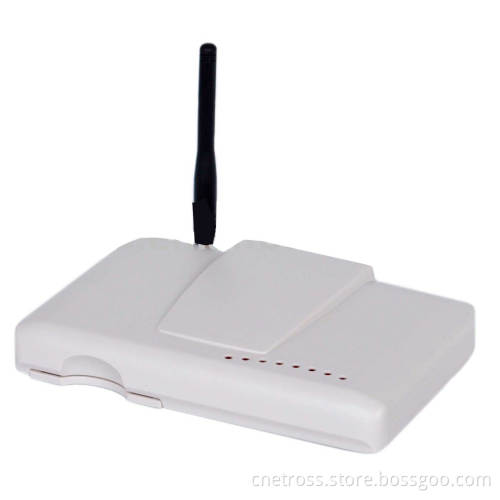

CDMA FWT (etross-8828)

Product name: CDMA FWT/CDMA Fixed Wireless Terminal/CDMA WLL 800MHz/1900MHz Ruim/Non-ruim
Following are the key technical specifications of this Terminal:
1. Networks support: CDMA 800/1900MHz
2. Support: RUIM/Non-ruim SUPPORT (optional)
3. Industrial module
4. Voltage: DC 9V /DC12V
5. Stand by hours: 48 Hours
6. Talk time: 2-6 Hours
7. Charging time: 6 hours
8. Power consumption:
Static≤ 25MA emission≤ 500MA
9. Peak power consumption: 0.25W/0.5W
10. Receive sensitivity: -104dB
11. Antenna increment: All directions: 5.0dB Certain/Selection: 12dB
Functions
The key functions of the Terminal are list as below:
1. Color: White casing
2. Can dial the local calls, mobile calls, international calls and special free calls
3. Supports modem mode
4. Supports DTMF phone Caller ID
5. Accurate signal charge and bi-directional; Voice detect charge
7. Provide loop reverse signal when connecting to metering
8. It can lock SIM card and terminal
9. RJ-11 ports (two extensions: Line / phone and line (optional))
Cautions and Storage
1) Cautions
1. This terminal should not be used at garage, oil storage, and chemical plant or near to any inflammable or explosive substance.
2. This terminal should be avoided in the hospital. It will interfere with medical electronic equipments such as pacemaker and audiphones.
3. If it is found that the terminal is not successful in login onto network, please check whether the SIM card or antenna is well installed.
4. It is blocked to touch the antenna when the Terminal is being used. (Being making calls or receiving calls), otherwise the terminal will be damaged. This kind of damage is beyond the range of warranty.
5. When the terminal is being used, it should be placed where signal is strong enough. In order to ensure good voice quality, the terminal should be far from other electronic equipment.
6. Dont use chemic substance to clean the terminal, but use dry soft cloth to clean it.
7. Don't disassemble the terminal by yourself. If there is any problem, please contract the authorized personnel.
2) Storage:
The terminal that is packed or not could piled up no more than 10 layers.
The terminal should be saved in ventilate and dry place.
Dont knock the terminal to avoid breaking the case.
Connect the terminal
1 )Connecting Your Service Provider
To use the networks services available in you terminal, you will need to sign up with wirelesses provider and purchase a SIM (Subscriber Identity Module) Card or purchase a prepaid SIM card. In many cases, the wireless provider will make available descriptions of its services and instructions for using its features. Wireless provider may differ in their support of features. Before you sigh up, make sure a wireless provider support the features that you need.
2 )Installing the Antenna
To choose a proper place for the antenna is the first and very important step for antenna installing. You can use your mobile phone to search for the place where the strongest signal is. Then put the antenna here.
Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal.
Please do not make the antenna and the terminal too close to the TV set, computer, and radiogram. It will disturb the signal of the terminal.
