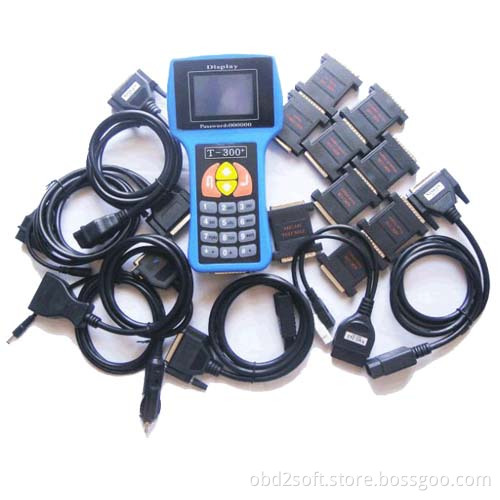

Automan T300 key programmer English Version 2014.02 Locksmith Tool

It is the latest version, which is 2014 full, add more cars than old version. Use for key programming. More cars than any other transponder machine .

Procedure for adding transponder keys to vehicles with separate Immobilizer box:

(for Audi to year 97, for Golf 3, for Passat B4, for Transporter, for Lupo, for Sharan)

Switch ignition ON with new key. Select: Immobilizer -> Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).

For example, if your Login is 1234, enter 01234.

Save

Go to Adaptation

Enter 01 in "Channel Number"

Enter

The "Stored Value" is the number of keys currently matched.

Enter number corresponding to the total number of keys to be matched, - for ex 2 ;

Enter -> Save

Switch ignition off and remove key

Insert next key to ignition and switch ignition on again

Wait 15 sec. Repeat this step with each key until all keys have been matched.

Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation

Enter 00 in "Channel Number"

Enter 0 and Save. This will learn ECU with Immobiliser.

Procedure for adding transponder keys to vehicles with Immobilizer in the instrument cluster:

(for Audi from year 97, Golf 4, Passat B5, B6 )

Switch ignition ON with new key. Select: Instrument -> Login

Enter 5 numbers Login Code (add 0 if you have 4 digits Login Code).

For example, if your Login is 1234, enter 01234.

Save

Go to Adaptation

Enter 21 in "Channel Number"

Enter

The "Stored Value" is the number of keys currently matched.

Enter number corresponding to the total number of keys to be matched, - for ex 2 ;

Enter -> Save

Switch ignition off and remove key

Insert next key to ignition and switch ignition on again

Wait 15 sec. Repeat this step with each key until all keys have been matched.

Select: Immobilizer -> Login. Enter Login Code. Go to Adaptation

Enter 00 in "Channel Number"

Enter 0 and Save. This will learn ECU with Immobiliser

T-code T300 Models coverage:

for Acura, for Audi, for Alfa, for Chevrolet, for Citroen, for Daewoo, for Fiat, for GM, for GM Holden, for Honda, for Hyundai, for Isuzu, for Infiniti, for Jaguar, for Kia, for Land Rover, for Lancia, for Lexus, for Lincoln, for Mazda Japan, for Mazda USA, for Mercury, for Mitsubishi, for Nissan, for Peugeot, for Renault, for Rover, for Seat, for Skoda, for Suzuki, for Toyota Japan, for Toyota USA, for Volkswagen and for VW/ for Audi (Pin code reading) .

Function introduces of T300 chip key decoder

1. Read the vehicle malfunction code

2. Clear the vehicle malfunction code

3. Read the system data stream

4. Read IMM0/ECU ID

5. Fetch the machinery key code

6. Clear vehicle key memory

7. Program new key

8. Read vehicle key login password

9. Distinguish types of ECU

10. ECU-IMMOBILISER programme

11. Read EKA password

12. Programme new EKA password

13. Programme telecontrol implement
