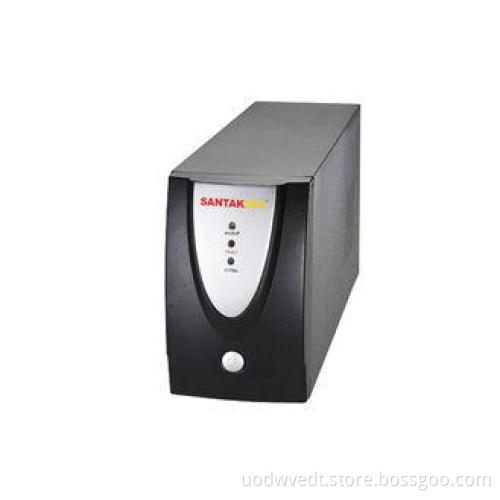

Energy Saving Standby UPS 500VA , Uninterruptible Power Supply
- B-pro UPS provides comprehensive protection in a small and economic package.
- The UPS is more compact and offers greater comprehensive power protection against surges and spikes.
- This UPS will continue providing stable power to connected equipment and enable to shutdown PC safely during power failure. It’s embedded microprocessor controller guarantees high reliability and it's perfect for any home or small office application.
- When utility power is disconnected, UPS informs the server immediately and gets ready to be switched off and automatically saves all data before performing the normal switch-off instruction. Even in an unattended network environment, UPS can ensure data safety of the network system.
Main Feature
- Fully digitized microprocessor controlled
- Energy saving (UPS sleep mode)
- Smart communication port
- Tel/Modem/Network surge suppression
- 50/60HZ frequency auto sensing
- AC line ok ("Power" LED always on)
- Back up mode ("Power" LED slow flash)
- Replace battery ("Power" LED fast flash)
- Short circuit and overload protection
- Advanced battery management(ABM)
- Automatic diagnostics & battery check
- User friendly design for hot swapping battery
- Bypass output filter for critical load
- EMI/RFI noise filter
Applications:
PCs, Workstations, Critical network devices
Specifications:
|
Model |
B-PRO 500VA |
B-PRO 600VA |
B-PRO 650VA |
|
Capacity |
500VA(280W) |
600VA(340W) |
650VA(360W) |
|
INPUT |
|
||
|
Voltage |
110/115/120 VAC or 220/230/240 VAC |
||
|
Acceptable Voltage range |
85-150VAC/145-290VAC |
||
|
Frequency Range |
50HZ/60HZ |
||
|
OUTPUT |
|
||
|
Voltage Regulation |
±10% |
||
|
Frequency Range |
50HZ/60HZ ±1 HZ |
||
|
Wave form |
Simulated(Modified)sine wave |
||
|
Transfer time |
2-6ms |
||
|
BATTERY |
|
||
|
Battery Type & Number |
12v 7ah x 1 pc |
||
|
Typical Recharge time |
8 hours recover to 90% capacity |
||
|
INDICATORS |
|
||
|
AC Mode |
Green LED lighting |
||
|
Battery Mode |
Green LED flashing every 4 seconds |
||
|
Low battery (Battery Mode) |
Green LED flashing every second |
||
|
Fault |
Red LED lighting |
||
|
ALARM |
|
||
|
Battery Mode |
Sounding every 4 seconds |
||
|
Low battery (Battery Mode) |
Sounding every second |
||
|
Fault |
Continuously sounding |
||
|
PROTECTION |
|
||
|
Discharge ,overcharge and overload protection |
|||
|
PHYSICAL |
|
||
|
Dimension, D x W x H (mm) |
305*85*140 |
||
|
Net weight (kgs) |
5.5 |
6.0 |
6.2 |
|
Body Material |
Plastic case |
||
|
ENVIRONMENT |
|
||
|
Humidity |
0-90% relative humidity (non-condensing) |
||
|
Operating Temperature |
0-40℃ |
||
|
Noise Level |
Less than 45dB |
||
Competitive Advantage:
1.Wide Input voltage / Frequency range, Generator compatibility
2.Built-in AVR (Automatic Voltage Regulator)
3.Dedicated AVR with surge protection outlet
4.Surge protection port for network (RJ45) or Modem (RJ11)
5.Sealed lead-acid, maintenance free battery
