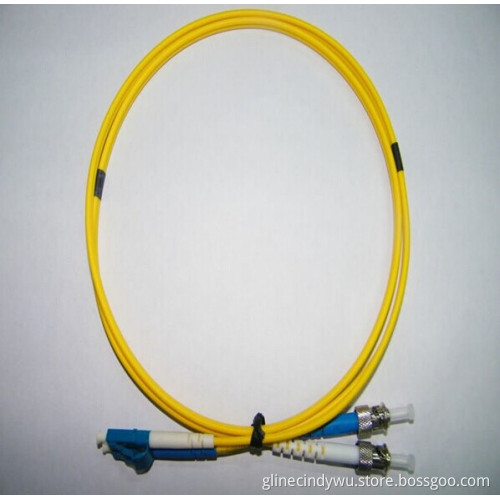

PVC&LSZH cable Waterproof fiber optic patch cord LC-ST With Low Insertion Loss
- Payment Type:
- T/T, L/C, Western Union
- Min. Order:
- 10
- Min. Order:
- 10
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 100000 /Month |
| Supply Ability: | 100000 /Month |
| Payment Type: | T/T,L/C,Western Union |
| Transportation: | Ocean,Land,Air |
- CATV
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX applications
9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,
10G (Multimode) OM3
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber
PVC or LSZH
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Model NO.
fiber optic patch cord LC-ST
Style
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type
Cable Type
Polishing Manner
UPC,SPC,APC (8°& 6°)
Insertion Loss
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)
Repeatability
±0.1dB
Operating Temperature
-40C to 85C
Geometry Requirement (For Singlemode)
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
