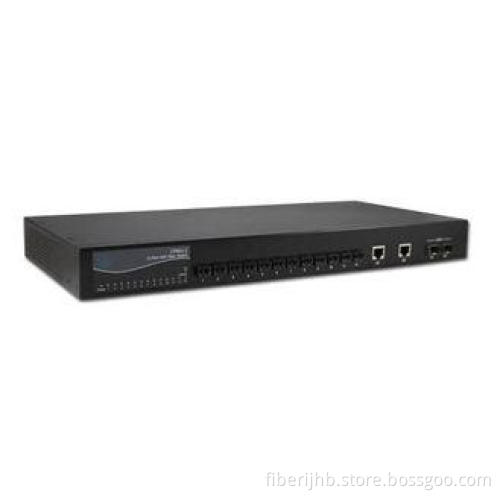

AC100V - AC240V IEEE 802.3x 12 Port Plastic Optical Fiber POF Ethernet Switches
- 12-port 100Base-FX POF Ethernet switch with 2 Gigabit TP/SFP ports.
- Supports full-duplex operations at its fiber-optic interface in the form factor of OptoLock interface.
- The OptoLock is one kind of POF (plastic optic fiber) interface that suit for low-cost and high-speed data transmission.
- The OptoLock patch cord that can transmit data at S200 (250Mbps) speed for 50 meters.
- The two Gigabit TP and SFP ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (small factor pluggable) interface, which provide high bandwidth and performance for Ethernet up link.
Technical Parameter:
|
Standard: |
IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3q IEEE 802.3p |
|
Port: |
12 100Base-FX POF Optolock 2-Port Gigabit TP+SFP ports |
|
Switch Processing Scheme |
Store-and-forward |
|
Throughput(packet per second) |
3.571Mpps |
|
Address Table |
4K entries |
|
Share data Buffer |
2.75Mbits |
|
Maximun Transmit Unit |
1536 Bytes |
|
Flow Control |
Back pressure for Half-Duplex, IEEE 802.3x Pause Frame for Full-Duplex |
|
Power Input |
AC100V-AC240V 50-60Hz |
|
Operational Temperature: |
0 ℃ ~ 50 ℃ |
|
Storage Temperature: |
-10 ℃ ~ 60 ℃ |
|
Humidity: |
5%~90% non-condensing |
|
Dimensions: |
442mm x 210mm x 43mm (W x D x H) |
