Module / Controller Card Prototype PCB Fabrication , Immersion Gold PCB
|
Product Name: |
PCB Prototype Fabrication |
Material: |
Standard FR4 |
|
Layer Count: |
2 Layers |
Board Thickness: |
1.6mm |
|
Copper Thickness: |
1oz |
Surface Finish: |
Immersion Gold |
|
Feature |
Hard Gold Finger |
Applications: |
Modules and Controller Cards |
Description:
PCB manufacturing facility serving the prototype and low volume pcb production requirements of contract PCB assemblers, electronics manufacturers, research &design engineering company, electronic hobbyist and university in the field of communications, consumer electronics, industrial control, education, automotive and medical equipment.
Specification:
|
Layer count |
Single sided, 2L, 4L,6L,8L,10L-26 Layers |
|
Base material |
FR4, High Tg FR4, CEM-3, Aluminum Base, Copper core, High frequency, Polyimide (PI), Polyester(PET) ,Rogers RO4350,Polyimide,Teflon,Getek Copper Clad Thermal Substrates |
|
Board thickness |
0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm |
|
Maximum Board Size |
580mmx700mm |
|
Copper thickness |
0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz |
|
Minimum Hole Size |
0.2mm |
|
Minimum Trace/Space |
4mil/4mil |
|
Surface finish |
HASL(Hot Air Solder Level), Pb Free HASL , Electroless Nickel and Immersion Gold (ENIG), Plating Gold, Gold Fingers (Gold Connector), Silver Immersion, Organic Surface Protectant (OSP), Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG),Hard Gold |
|
Solder Mask |
Green, Red, Blue, Black, Matte Green, Orange |
|
Silk Screen |
White, Yellow, Black |
|
PCB Fabrication |
Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots |
|
Quality Control |
IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing |
|
Special Technology |
Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole
|
Applications:
- Consumer Electronics
Cooling and Washing machine, Home Computer, Home Theater/Stereo Surround Sound System, Cable Television Converter Box, Hand Held Video Games, Digital and analog Switching, Remote control electronic toys, Disk Drive duplication systems, LOJACK auto recovery system, Electronic Television Audience Measurement Systems/Electronic Audience Measurement Systems
- Telecommunications
Transformer, Broadcasting & Cable TV, Cell Telephone Relay Stations, television and mobile multimedia transmission, CB Radio/2 Way Walkie Talkies Radio frequency (RF) system,Police/ Fire/ Rescue Radios, Communicating and non-communicating HVAC control products, Digital Network Equipment, SatCom transceivers, Sound and Vision Broadcasting, Commercial and Private Aircraft Radios and Instrumentation ect.
- Military Electronics
Radars, Military Communications, Naval Systems, Electronic Warfare Systems, IFF transponders, IR detectors, Night Vision Goggles, Military grade Computers with encryption, Fire Control circuits, Satellite Navigation instrumentation, Encrypted Frequency Hopping VHF Radios, Direction Finding Equipment, Missile Guidance Systems, FLIR Pod Test equipment ect.
- Medical Electronics
Heart Monitors, Automated Medicine dispensing equipment, biometrics and diagnostic equipment, Breathing machine, Dialysis machine, Laser assisted tooth whitening machine, Laser optical corrective surgery machine LASIX, X-ray or Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, Implantable devices, Robotic surgery systems, CAT Scan equipment
Advantage:
- No MOQ, low cost for small quantity prototype. We panelize prototype circuit boards on a big panel which will share set-up cost with other customers, which could save a lot PCB tooling cost for small quantity PCB prototype.
- PCB manufacturing on spec. We have professional engineering in the each production process from evaluating cost, checking and assessing Gerber requirement, making MI to production and final inspection to guarantee circuit board quality.
- Meeting your printed circuit board needs from PCB prototyping to mid-volume production
- ISO/TS certified PCB manufacturing factory.
- Deliver on time. We keep higher than 95% on-time-delivery rate
- Combined service to arrange your PCB to you by DDU TO DOOR shipment with competitive shipping cost. You don’t need to arrange anything after confirm the order just wait for your PCB deliver to your hand.
- Offer free DRC for DFM to our customer.
- Decades experience in supporting manufacturing PCB requirement from a wide range of industries

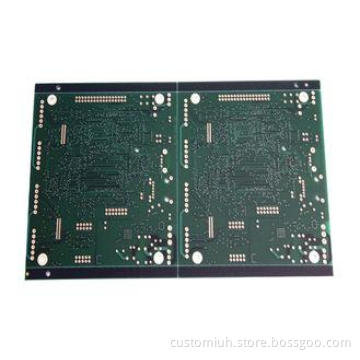

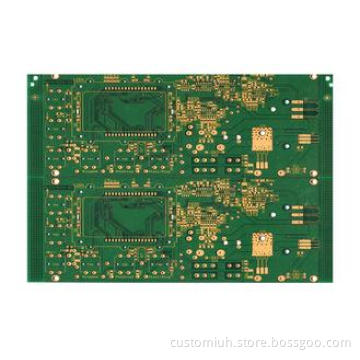

Product View:
