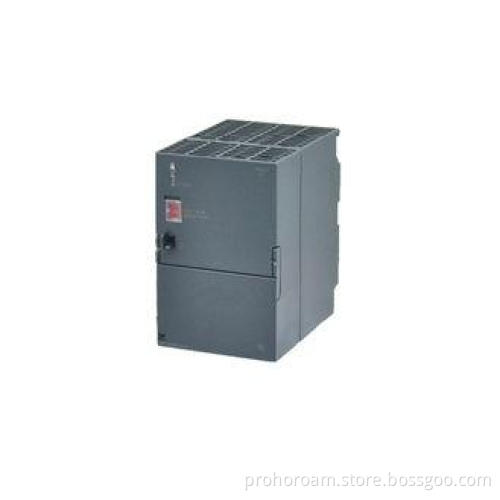

Programmable logic controllers PLC Fitting PS 307 Power sup
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Description and advantage
1. Max.output current:5A;
2. Output voltage:24V DC
3. Connect single-phase AC system(input voltage:120/230VAC,50/60Hz)
4. The isolation characteristic is stable;
5. Can be used as a load power supply.
Specification
|
he rated input voltage value |
120/230VAC |
|
|
Voltage range |
85~132V/170~264V AC |
|
|
System frequency |
value |
50 Hz ~ 60 Hz |
|
Permissible error |
47Hz ~ 63 Hz |
|
|
The rated input current value |
At 230V |
1.3A |
|
At 120V |
2.1A |
|
|
Starting current |
< 45 A, < 3 ms |
|
|
I2t(at starting current) |
1.2A2s |
|
|
Output voltage |
value |
24VDC |
|
Permissible error |
24V±3% |
|
|
Rise value |
＜2 S,typical value:60ms |
|
|
The rated output current value |
5A,can not be connected by Parallel connection |
|
|
Short circuit protection |
Electronic shutoff, cold start automatically |
|
|
Residual ripple |
Max:150mVpp |
|
|
Discharge current |
< 3.5 mA (typical value:0.3 mA) |
|
|
Efficiency |
About 87% |
|
|
Power consumption |
typical value:18W |
|
|
Output voltage have indicating lamp. |
Normally at 24V,green indicating lamp is working |
|
|
Dimensions(W×H×D) |
80×125×120 |
|
|
Weight |
About 750g |
|
