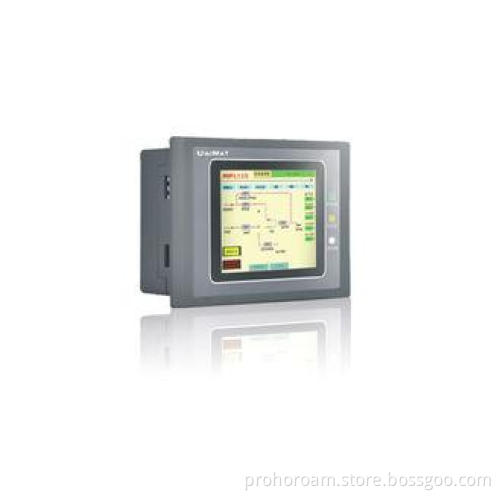

3.5 inch Human Machine Interface 350cd/sqm LED Backlight HM
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Advantage
1. 3.5" TFT Color LCD
2. 4:3 320*240 resolution
3. Color: 262144
4. USB Download, COM1: RS232/422/485
5. CPU Speed: RISC 400MHz
128M Flash + 64M DDR2(SDRAM)
Specification
|
Display |
Dimension |
3.5" ( Length x Width = 4:3 ) |
|
Resolution |
320 x 240 |
|
|
Touch Panel |
4- wire high precision touch panel |
|
|
Display Color |
266,144 |
|
|
Backlight Unit |
LED |
|
|
Contrast |
400:1 |
|
|
Brightness |
350cd/sqm |
|
|
SD Card |
N/A |
|
|
Memory |
128M/FLASH + 64M DDR |
|
|
CPU |
32-bit 400MHz RISC |
|
|
Protection Grade |
IP 65 Front Panel |
|
|
Housing Material |
Engineering Plastics: ABS+PC |
|
|
Power Supply |
Power Supply |
DC24V(+/-15%) |
|
Power Consumption |
3w |
|
|
Interface |
Serial Interface |
COM1: RS232/422/485 |
|
USB Download Port |
Yes |
|
|
USB |
N/A |
|
|
RJ 45 |
N/A |
|
|
Environment |
Operation Environment |
~10 - 65℃ |
|
Operation Environment |
10 ~ 90% RH |
|
|
Anti-Vibration |
10-25Hz( XYZ direction 2G/30 minute) |
|
|
Mechanical |
Dimension |
136 x 89 x 39mm |
|
Cut-out |
124 x 81 mm |
|
|
Weight |
0.5kg |
|
