Aluminum Tape Layer Telecommunication Outdoor Fiber Optic C

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

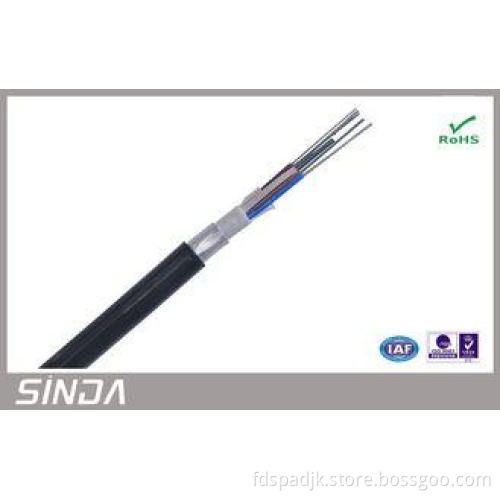

Aluminum Tape Layer Telecommunication Outdoor Fiber Optic Cable In Networking

Quick Detail:

Product Name : Aluminum Tape Layer Loose Tube Outdoor Cable

Fiber brand : YOFC, CORNING,FUJIKURA

Fiber count : 24-144 cores

Fiber sort : Single and Multi mode

Model: GYTA

Certification : ISO, ROHS, UL,SGS,ATC

Sheath : PE

Package : Wood Drum

Fiber sort : Single and Multi mode

Description:

Steel wire strength.filler protect tube fiber.steel tape armord.

Good ultra violet radiation resistant property.

Good moisture-resistance.

Applications:

Adopted to Outdoor distribution.

Suitable for aerial .pipeline laying method.

Long distance and local area network communication

Specifications :

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
24	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
36	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
42	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
48	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
60	10.5	90.00	1500	600	1000	300	20D	10D	-40+60
72	13.5	160.00	1500	600	1000	300	20D	10D	-40+60
96	13.5	160.0	1500	600	1000	300	20D	10D	-40+60
144	15.5	180.0	1500	600	1000	300	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber

Competitive advantages:

Our products conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

Our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
