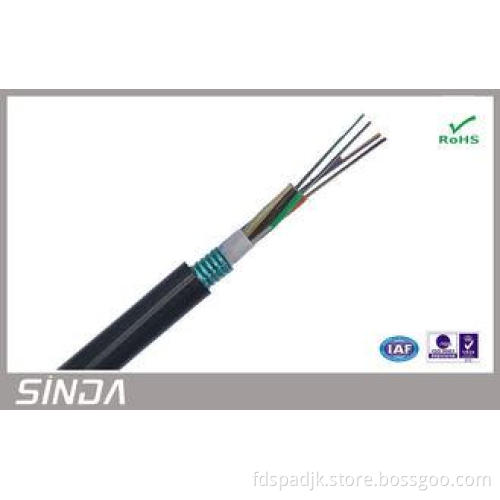

144 cores GYTS PE Outdoor Direct Buried Fiber Optic Cable GYTS
Quick Detail:
Fiber brand : YOFC, CORNING,FUJIKURA
Fiber count : 24-144 cores
Fiber sort : Single and Multi mode
Model: GYTS
Number of Conductors : ≥ 10
Certification : ISO, ROHS, UL,SGS,ATC
Sheath : PE
Package : Wood Drum
Operating Temperature : -40~+60gree
Fiber sort : Single and Multi mode
Product Name : Steel Tape Layer Losse Tube Outdoor Cable
Description:
Steel wire strength.filler protect tube fiber.steel tape armord.
Good ultra violet radiation resistant property.
Good moisture-resistance.
Applications:
Adopted to Outdoor distribution.
Suitable for aerial .pipeline laying method.
Long distance and local area network communication
Specifications :
|
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
|||
|
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(℃) |
|
|
24 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
36 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
42 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
48 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
60 |
10.5 |
105.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
72 |
13.5 |
208.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
| 96 | 13.5 | 208.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 144 | 15.5 | 295.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C,D) | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||
Competitive advantages:
Good price, reliable quality, guarantee of delivery, professional service.
