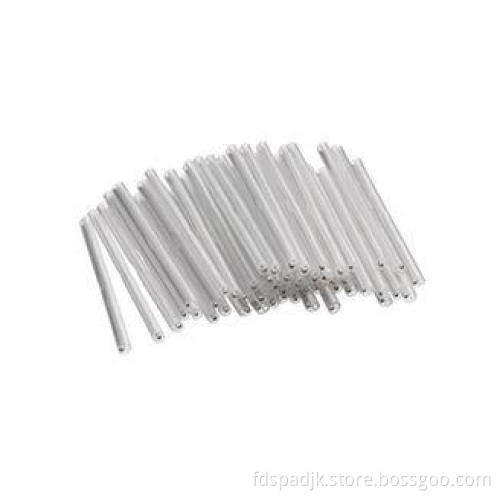

PE Insulation Heat-Shrinkable Fiber Optic Splice Sleeves Transparent Plastic , 40mm

Quick Detail:

Place of origin: Guangdong ,China
Material: PE
Type: Insulation sleeving
Heat Shrink Ratio: As request
Application: High Voltage
Rated Voltage: 600V
Tensile Strength: 14MPa
Color: Transparent

Description:

Excellent reinforcement of fusion splicing portion
Reliable protection under any environmental conditions
40mm & 60mm length available
2.5mm & 3.0mm diameter for option

Applications:

Optical adapter (SC/FC/MU/LC/PC/APC)
Attenuator, Terminator, Receptacle
WDM,FTTH,PON,CATV, SONET/SDH,Fiber Channel,Gb Ethernet
In-vehicle, Military, Medical

Specifications :

Shrinking Temperature (°C)	110 ~ 130
Radial Shrinking Rate (%)	>50
Axial Shrinking Rate (%)	<10
Low Temperature Property	No crackle at -55°C lasting 4 hours
Normal Operation Temperature (°C)	-45°C ~ + 105°C
Normal Operature Relative Humidity	≤95%
Spark- over Strength (kV/mm)	≥20
Tensile Strength (Mpa)	20
Loss at -40°C	0.03dB
Loss at +60°C RH95%	0.02dB

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
