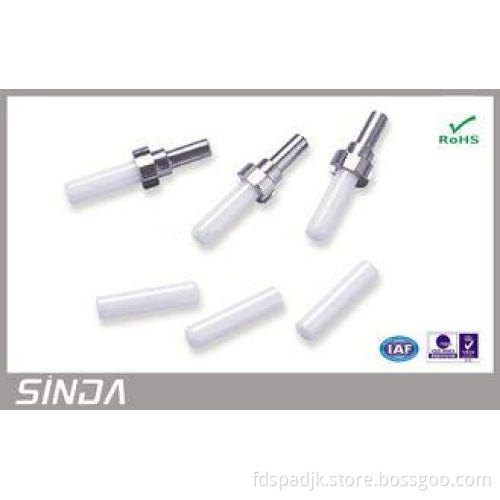

Fiber Optic Zirconia Ceramic Ferrule For Making Fiber Optic

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Fiber Optic Zirconia Ceramic Ferrule For Making Fiber Optic Patch Cord

Quick Details :

Optimized for SC, FC, ST connector

High quality and performance

High precision for concentricity, I.D., O.D.

Low insertion loss

High reliability by using zirconia

Compliant with RoHS and Telcodia-GR-326-CORE

SC ferrule SM & MM available

Description:

Low insertion loss

Strong interchanging capability

UL94V-O and ROHS standard

High resistance of corrosive

Applications:

Optical fiber communications system

Optical fiber access networks

Optical fiber CATV

Optical fiber test equipements

Optical fiber data communication

LAN

Specification :

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

Competitive advantages:

Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
