Basic Info

Place of Origin:	China

Product Description

Multi Receivers Lilliput Wireless 7 HDMI Monitor With FHD 60Hz video format

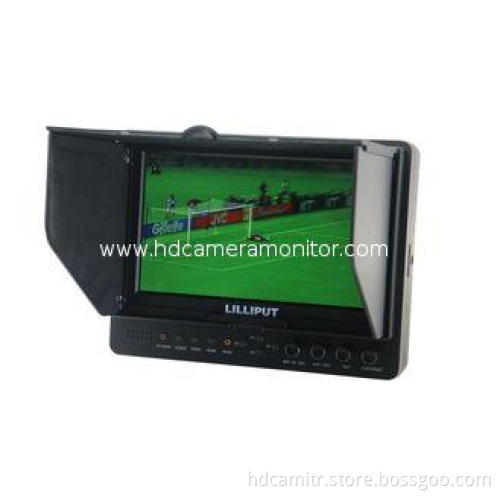

Lilliput 665/WH 7" Wireless HDMI Monitor With HDMI Input

Note: 665/WH (Wireless HDMI input)

Built-in Wireless HDMI Receiver is compliant with WHDI 1.0
No HDMI cable, no trouble
High contrast:800:1
Wireless transmission without delay
WHDI,YPbPr & HDMI input/output
Transmitter distance:30-meter
Wide voltage:DC 6.5-24V
FHD 60Hz video format supported
Flexible folding sunshade

PTP & PTMP Transmission:

· PTP: Point-to-point (standard),

· PTMP: Point-to-multipoint (optional)
*One transmitter can work with one receiver or multi-receivers.

PTP & PTMP Transmission:

PTP: Point-to-point (standard),

PTMP: Point-to-multipoint (optional)

*One transmitter can work with one receiver or multi-receivers.

Advanced Functions:
Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 4x Zoom, Picture-in-Picture, Image Flip.

Specifications

DISPLAY	Panel	7" LED backlit
	Physical Resolution	1024×600, support up to 1920×1080
	Aspect Ratio	16:9
	Brightness	250cd/M2
	Contrast	800:1
	Viewing Angle	160°/150°(H/V)
INPUT	WHDI	1
	HDMI	1
	YPbPr	3(BNC)
	VIDEO	1
	AUDIO	1
OUTPUT	VIDEO	1
POWER	Current	800mA
	Input Voltage	DC 7-24V(XLR)
	Battery Plate	V-mount / Anton Bauer mount /
	Battery Plate	F970 / QM91D / DU21 / LP-E6
	Power Consumption	≤10W
ENVIRONMENT	Operating Temperature	-20°C~60°C
ENVIRONMENT	Storage Temperature	-30°C~70°C
DIMENSION	Dimension(LWD)	194.5×150×38.5 / 158.5mm (with cover)
DIMENSION	Weight	560g / 720g (with cover)
VIDEO FORMAT	WHDI(wireless HDMI)	1080p 60/50/30/25/24Hz
		1080i 60/50Hz, 720p 60/50Hz
		576p 50Hz, 576i 50Hz
		480p 60Hz, 486i 60Hz
	HDMI	1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
		1080i 60/59.94/50Hz, 1035i 60/59.94Hz
		720p 60/59.94/50/30/29.97/25Hz
		576i 50Hz, 486i 60/59.94Hz, 480p 59.94Hz
