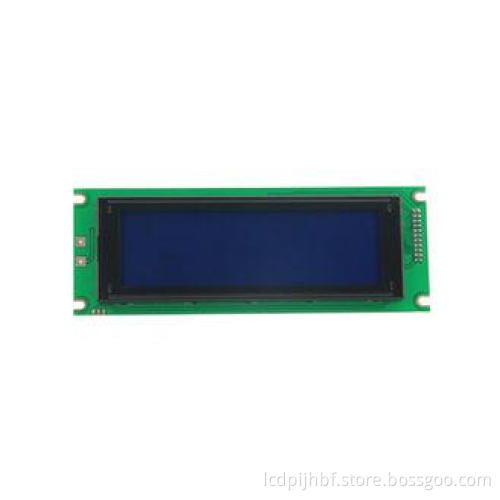

240*64 COB Monochrome Graphic STN FSTN LCD Module for Instrument Meter,Electric Power
Description:
1. IC Connection Method: COB/TAB
2. LCD Display Mode: STN Yellow-Green/Blue
3. Viewing Direction: 6 O'Clock
4. Backlight type & Color: LED, White/Yellow-Green
5. Driving Method: Duty 1/64 Bias 1/9
6. Control/Drive IC: T6963
7. LCD Connection: Zebra
8. MCU Interface Type: 8Bit Parallel mode
9. Main Component: LCD+Controller+PCB+BL+Zebra
Main Application
|
Wire tester |
Communications equipment |
|
Instrument & meter |
Car audio-visual |
|
Industrial equipment |
Home appliances |
|
Manipulator controller |
Consumption electronics |
|
Medical Equipment |
POS |
|
Electricity,Power Controller Device |
Beauty Equipment, |
|
Semi auto analyzer |
Medical Equipment |
|
ECG |
Injection Machine |
Essential Specification
|
24064 Series |
|
|
Parameter |
Data |
|
Viewing Angle |
6’O CLOCK |
|
V.A. |
132*39 |
|
Dots |
240*64 |
|
Driving IC |
T6963 |
|
Operation Voltage |
-20℃-+70℃ |
|
Storage Voltage |
-30℃-+80℃ |
|
Interface timing |
8-bit Parallel |
|
Connector |
ZEBER |
The main model of 240*64 Series is as follows
|
P/N |
BL Voltage |
Module Voltage |
LCD Mode |
BL Color |
Contrast Ratio |
Outline Size(mm) |
|
TSC-G24064B2DBSWSD |
5V |
5V |
STN BLUE |
White |
Adjustable |
180*65*16 |
|
TSC-G24064C1DBSWSD |
5V |
5V |
STN BLUE |
White |
Adjustable |
180*65*13 |
|
TSP-G24064B3DBSWSD |
5V |
5V |
STN BLUE |
White |
Adjustable |
180*65*14 |
|
TSP-G24064ADYLYSD |
5V |
5V |
STN Yellow-Green |
Yellow-Green |
Adjustable |
180*65*15 |
|
TSP-G24064BDBSWSD |
5V |
5V |
STN BLUE |
White |
Adjustable |
180*65*16 |
Product Range
1. LCD Type: TN, HTN, STN, FSTN, VA
2. Any digitals, icons, graphic can be customized and designed according to your requirement
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: FPC, Metal Pins, Zebra, Heat-seal
5. Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. Various Backlight color available
7. IC Mounting Method: COB,COG,TAB etc
QC Process
1, Appearance
2, Temperature range
3, Black/White sports
4, Linear defects
5, Rainbows
6, Luminosity of backlight
7, Uniformity of backlight
8, LCD current
9, Character pattern
10, Backlight current
11, Contrast ratio
12, Respone time
