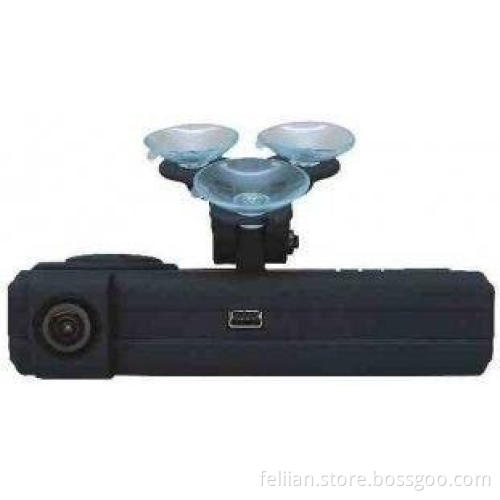

640x480 resolution Single CH Vehicle Car Video Recorders Camera Systems support SDHC Card
|
Key feature |
- Ideal for car, taxi, trucks and buses.
- Easy to install.Small in size to prevent blocking the driver’s view.
- Plug-n-Play.Both front & back cameras can record synchronously.
- G-sensor, GPS and Image data will be recorded and playable by software player.
- G-sensor sensitivity can be adjusted according to vehicles and road situations.When detect a strong shock, system will start emergency recording and keep the files without being overwritten.
- Front view angle approx. 120 degrees. Back view angle approx. 170 degrees.
- Google map is available for viewing the recorded file and let user to view the routes.
- SDHC memory card Class 6 or above recommend.
|
Specifications |
|
Sensor Device |
Forward facing lens: VGA CMOS Sensor. |
|
Backward facing lens: VGA CMOS Sensor. |
|
|
View Angle |
Outside vehicle approx. : 120 degree |
|
Inside vehicle approx. : 170 degree |
|
|
Voltage |
Machine Start: 5V±5%, 600mA. Operating: 500mA (IR on) / 350 mA (IR off). |
|
Remark: Please use 5V±5% 1A, Cigarette lighter adapter. The machine needs 4.8V to start. |
|
|
Operating Temp |
-15℃~+65℃(Inside Vehicle). |
|
Storage Device |
Silicon Power or Transcend Micro SDHC card. Class 6 or above recommend (up to 32GB). |
|
Recording Frame |
Forward facing lens: 640x480 (highest resolution) NTSC : 30 fps PAL : 25 fps |
|
Backward facing lens: 640x480 (highest resolution) NTSC & PAL : 15 fps |
|
|
Auto record when power up system |
|
|
Recording content |
Date, time, image, sound, G-sensor data, GPS data. |
|
Recording Format |
Specific format for software player. |
|
Microphone |
Single Channel Audio |
|
Time Setting |
Auto-calibrating by GPS signals. If GPS is not available, the built-in clock will be used. |
|
G-Sensor |
Internal 3D G-Sensor. |
|
Input Device |
(a) Emergency Button : For emergency recording. Gleams in nighttime. |
|
(b) Red light: Recording indicator. In emergency recording, it flashes more frequently. |
|
|
Green light: Flashing: Searching GPS signals. Light on : GPS positioning ready |
|
|
Remark: When IR turns on, the LED light will be dimmer. |
|
|
Description |
(a) Please do not plug the power in both micro-USB terminals. The machine might be damaged. |
|
(b) SD card must be formatted by special player first to be used properly. |
|
|
Important Notice |
(a) GPS positioning speed will be affected by weather, window films, etc. |
|
(b) Window film may contain metal substances and have impact on GPS positioning. |
|
|
(c) IR starts according the environment lux situation (weather, windows film, etc.) |
|
|
(d) When machine starts, it will be in the nighttime mode first for around 30 seconds then switch to daytime mode if the environment lux is enough |
|
|
(e) After formatting, the remaining capacity will show 80MB. |
|
Packaging |
(1). Packaging Including: DVR, Cable, CD (User Manual+Play back Software), SD card reader
(2). Package and Weight:
N.W:0.35KG
G.W: 0.65KG
Body Size:
Package Size:
