Pixel Pitch 10mm RGB Full Color Outdoor Advertising LED Dis

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

OPTO / SILAN P10 Outdoor Advertising LED Display 1R1G1B with MBI5024 IC

Quick Detail:

1. DIP346 LED type;
2. R9 GB10×12 chip size;
3. IP65 waterproof cabinet;
4. Full color 1R1G1B LED;
5. Not less than 7500 nits per square meter;
6. HDMI or VGA output signal.

Detail Description:

Taiwan OPTO / SILAN LED, high brightness, long life time;
CAD drawing about steel structure would be provided for reference;
CE branded power supply makes the display work steadily.

Application:

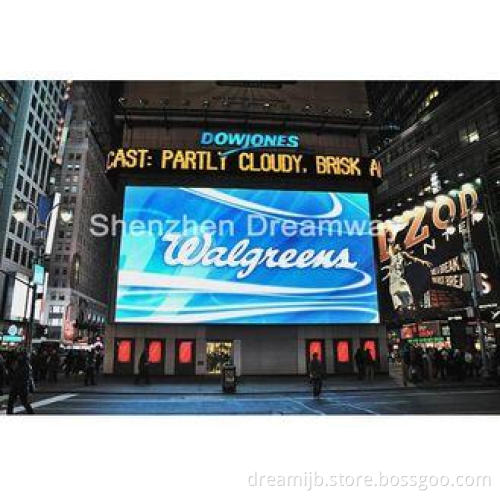

Such LED display is generally installed outside commercial plaza, shopping mall for advertising.

Specifications:

Model	PH10
LED Composition	1R1G1B
LED Encapsulation	DIP346
Pixel per Square Meter	10,000 dots
Module Pixel	W 16 × H 16 dots
Module Size	W 160 × H 160 mm
Standard Cabinet Size	W 960 × H 960 × D 150 mm
Cabinet Color	Black
Cabinet Material	Steel waterproof
Drive Mode	1/4 scan constant current
Brightness	≥7500 nits/sq.m
Refresh Rate	≥800Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Span	＞100,000 hours
Power Supply	110V/60HZ and 220V/50HZ interchangeable
Humidity	10%~90%
Control Method	Synchronous control with PC on
Operation System	Win2000 / XP / Vista
