Waterproof 24V 9AH E-Bike LiFePO4 Battery Pack Bottle Type
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|

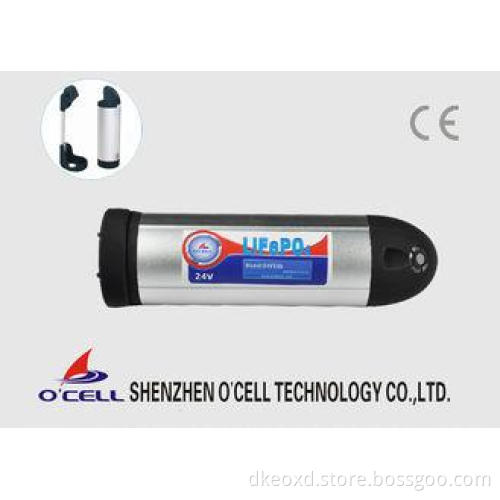

Waterproof 24V 9AH E-Bike LiFePO4 Battery Pack Bottle Type High Stability
24V 9AH water bottle battery, kettle battery
Material:LiFePO4
Dimention: 91*419mm
1.stable and safe
2.long cycle life
LiFePO4 battery specification:
| NO. | Items | specifications |
| 1 | Charge voltage | 29.6v |
| 2 | Number of series | 8S3P |
| 3 | Nominal voltage | 25.6v |
| 4 | Norminal capacity | 9AH(0.2C discharge) |
| 5 | Charge current | standard charging: 0.2C |
| 6 | Rapid charge: 0.5C | |
| 7 | Charging time | standard charging:6.0 hours |
| 8 | rapid charge: 3.0 hours | |
| 9 | Max charge current | 0.5C |
| 10 | Max discharge current | 3C |
| 11 | Discharge cut-off voltage | 16.0V |
| 12 | Operating temperature | charging: 0°C-45°C |
| discharging: -10°C-45°C |
BMS Spec
1. Operating current: 10-20A
2. Peak current: 20-30A
3. Charge current: 2A
4. Over-voltage protection: 29.6V
5. Under-voltage protection: 16V
6. Over-temperature protection: 60°C
Charger Specification:
1. Output: 29.4V DC 2A
2. Input: 100-240VAC (As your country's standard)
Packing List:
1) 1pack 24V 9AhLiFePO4 Battery (Aluminum Alloy Shell)
2) 1pcs 29.6V 10A-20A BMS
3) 1pcs 29.4V2Amps Alloy Charger
4) Key and other parts
1. Features:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
7) Broad operating temperature range: discharge temperature: -20-60°c
24v, 36v, 48V battery with different capacity are available for E-bike, the battery can be customize per customer request.
If you have any question, please feel free to let me know at any time.
