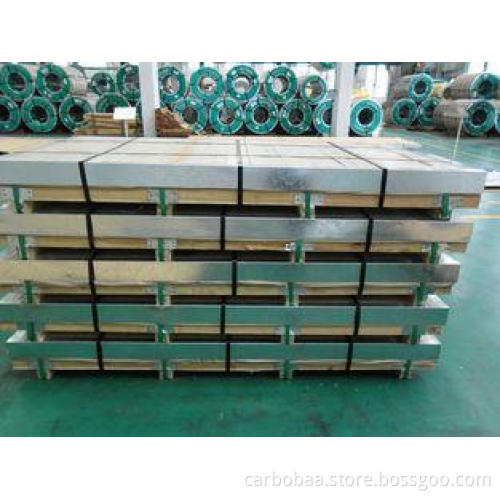

430 / 304 / 316L 2B / BA Cold Rolled Stainless Steel Sheet, 0.3 - 3.0mm Thickness, 1000mm 1219mm Width
Quick Detail:
|
Steel Grade: |
304 310 310S |
Surface: |
2B, BA, No. 4, 8K(mirror), HL, Embossing, Etc |
|
Thickness: |
0.3-3.0mm |
Width: |
1000mm, 1219mm, 1500mm |
Description:
1. Grade:300 Series
2. Standard:JIS, AISI, ASTM, GB, DIN, GOST
3. Length:1000mm-6000mm
4. Thickness:0.3mm-3.0mm
5. Width:1000mm-2000mm
6. Place of Origin:Wuxi, China(Mainland)
7. Brand Name:Tisco or Lisco or Posco or Zpss
8. Model Number:201, 202, 301, 304, 304L,321.316L.317L 309S,310S etc
9. Type:Stainless steel Plate/Sheet
10. technical processing:hot rolled and cold rolled
11. surface:2B, BA, No.1, HL,NO.4,8K
12. certificate:BV,SGS,the third inspections
Applications:
Specifications:
|
Type |
Stainless steel Sheets (cold rolled or hot rolled) |
|
Thickness |
0.3mm-3.0mm |
|
Width |
10mm-2000mm |
|
Length |
1000mm-11000mm or as customer's requirement |
|
Finish |
2B,BA,HL,MIRROR,NO.1-NO.4,8K,and so on. |
|
Standard |
ASME, ASTM, EN ,BS,GB,DIN, JIS etc |
|
Material |
201,202,304,304L,316,316L,321,310S,410,410S,420,430,347H,2Cr13,3Cr13 etc |
|
Application range |
Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy, Medical equipment, fertilizer etc |
|
Package |
Standard export sea-worthy packing |
|
Delivery time |
7-15 days |
|
Quality |
Prime |
|
Productivity |
500 tons/month |
|
Note |
We can produce other standard as the customers’ requirement |
THE CHEMICAL COMPOSITION AND MECHANICAL PROPERTIES
|
Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Cr |
Ni |
Mo |
|
201 |
0.15 |
5.50-7.50 |
0.06 |
0.03 |
1 |
16.00-18.00 |
3.50-5.50 |
- |
|
202 |
0.15 |
7.50-10.00 |
0.06 |
0.03 |
1 |
17.00-19.00 |
4.00-6.00 |
- |
|
301 |
0.15 |
2 |
0.045 |
0.03 |
1 |
16.00 - 18.00 |
6.00 - 8.00 |
- |
|
304 |
0.08 |
2 |
0.045 |
0.03 |
1 |
18.00 - 20.00 |
8.00- 10.50 |
- |
|
304L |
0.03 |
2 |
0.045 |
0.03 |
1 |
18.00 - 20.00 |
8.00- 12.00 |
- |
|
310S |
0.08 |
2 |
0.045 |
0.03 |
1.5 |
24.00- 26.00 |
19.00-22.00 |
- |
|
316 |
0.08 |
2 |
0.045 |
0.03 |
1 |
16.00 - 18.00 |
10.00- 14.00 |
2.00 - 3.00 |
|
316L |
0.03 |
2 |
0.045 |
0.03 |
1 |
16.00 - 18.00 |
10.00- 14.00 |
2.00 - 3.00 |
|
316Ti |
0.08 |
2 |
0.045 |
0.03 |
1 |
16.00 - 18.00 |
10.00- 14.00 |
2.00 - 3.00 |
|
317 |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
18.00 - 20.00 |
11.00 - 14.00 |
3.00 - 4.00 |
|
317L |
0.03 |
2 |
0.045 |
0.03 |
0.75 |
18.00 - 20.00 |
11.00 - 15.00 |
3.00 - 4.00 |
|
321 |
0.08 |
2 |
0.045 |
0.03 |
0.75 |
17.00 - 19.00 |
9.00 - 12.00 |
- |
Finish Introduction
|
Surface Finish |
Definition |
Application |
|
2B |
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. |
Medical equipment, Food industry, Construction material, Kitchen utensils. |
|
BA |
Those processed with bright heat treatment after cold rolling. |
Kitchen utensils, Electric equipment, Building construction. |
|
NO.3 |
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction. |
|
NO.4 |
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction, Medical equipment. |
|
HL |
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. |
Building Construction. |
|
NO.1 |
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank, pipe |
|
Grade |
STS304 |
STS 316 |
STS430 |
STS201 |
|
Elong(10%) |
Above 40 |
30MIN |
Above 22 |
50-60 |
|
Hardness |
≤200HV |
≤200HV |
Below 200 |
HRB100,HV 230 |
|
Cr(%) |
18-20 |
16-18 |
16-18 |
16-18 |
|
Ni(%) |
8-10 |
10-14 |
≤0.60% |
0.5-1.5 |
|
C(%) |
≤0.08 |
≤0.07 |
≤0.12% |
≤0.15 |
|
Container Size |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High) |
Competitive Advantage:
1) Transportation speed is quick
2) High quality, quantity is with preferential treatment
3) We can cut stainless steel sheet in any shapes
4) Famous stainless steel company in China and overseas.
5) Strong ability to supply
6) Branded stainless steel
7) More than 200 patterns
8) Bottom price
9) Reliable quality and service
10) Fast delivery
WEIGHT CALCULATE
316 316L 347 309S 310S: THICKNESS(mm)*WIDTH(m)*LENGTH(m)*7.98=?KG/PIECE
304 304L 321 201 202 : THICKNESS(mm)*WIDTH(m)*LENGTH(m)*7.93=?KG/PIECE
405 410 420: THICKNESS(mm)*WIDTH(m)*LENGTH(m)*7.75=?KG/PIECE
409 430: THICKNESS(mm)*WIDTH(m)*LENGTH(m)*7.7=?KG/PIECE
