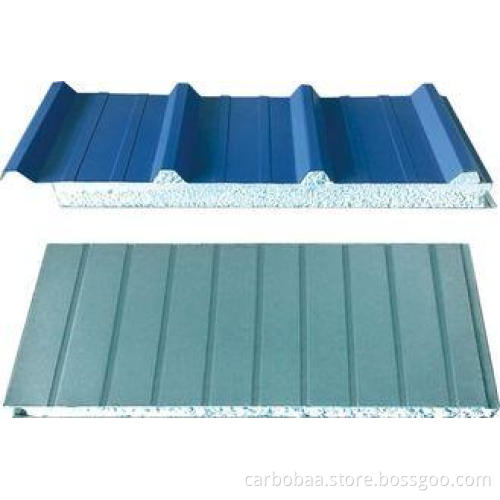

Steel PU Corrugated Sandwich Panel Heat Insulation For Prefab Houses
Quick Details
corrugated steel PU Sandwich panel
1. High quality and reasonable price
2. waterproof and fireproof
3. cycling use
1.1.1 Specifications
|
Steel Thickness |
0.23~0.6 mm |
|
Panel thickness |
50/75/100/125/150/200 mm |
|
Effective width |
(1) 950mm---for roof (2) 950 / 1150mm---for wall or ceiling |
|
Length |
According to customer's request,less than 11.8m |
|
Materials |
Inner is PU sandwich,two sides is Galvanized Color steel sheet |
|
Structure |
three layers: (1)upper layer is steel sheet, (2)the inner layer is PU sandwich, (3)the bottom layer is also steel sheet |
|
PU density |
30-50(kg/m³),etc Normal is:6kg,8kg/12kg,16kg/m3 |
|
color |
White grey or blue |
|
Parts |
Steel line for easy connect one by one Film covering in order to protect the steel of panels |
|
lifetime |
15~20 years |
|
Character |
Light in weight, heat insulation, fire-proof and waterproof,environmental |
|
Use |
various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums ,etc |
|
Packing |
Packing in shipping Container or according to your demands |
