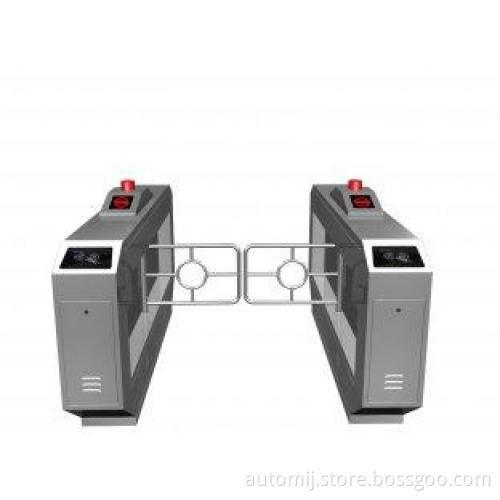

Magnetic Card One-way Direction Self-checking Automatic Swing Gate Barrier RS485 AC220V
Description:
SJSDZB07 is widely used in airport, musem, bus station, supermarket, park, and other traffic resticted areas. It is able to integrate with barcode, magnetic card, IC, ID card to excute access control, time attendance, tolling, etc. The machine rustproof, durable and can resist external destroy, able to be placed both indoor or outdoor
Applications:
Bus Station
Exhibition
Airport
Subway
apartment,
factory,
museum
Park and so on
Specifications:
|
Framework |
304# stainless steel plate |
|
Housing dimension |
1600* 280*1000mm |
|
Lane |
300-600mm |
|
Weight |
80 kgs |
|
Entry/exit direction |
One-way or two-way |
|
Awing Angle |
0-180 |
|
Working Voltage |
AC220V ±10% 50/60 HZ |
|
Motor |
DC 24V brushed motors |
|
Input interface |
dry contact signal or 12V level signal, or 12V pulse signal with whose pulse width ＞100ms, driven electricity ＞=10mA |
|
Communication interface |
RS485, distance ≤1200M |
|
Card-reading windows |
2 |
|
Speed |
40 people per minute (normal open), 25-30 people per minute (normal closed) |
|
Closing/opening time |
1-2 seconds |
|
Time for entering into passing status after power on |
3 seconds |
|
Time for automatic reset after breakdown |
10 seconds |
|
Temperature |
-10℃—— 50℃ |
|
Relative humility |
≤90%, no-condensation |
Competitive Advantage:
1. Breakdown self-checking and alarm, very convenient to maintenance and use.
2. Easy to program operation mode by built-in little keypad on master controller
3. Machanical Anti-Pinch structure enable motor to stop working automatically in given time
4. Anti-rushing function: the gate lock automatically without openning signal
5. Automatic resetting function: during openning, the system will cancel access if nobody pass in given time.
6. Easy to change NC/NO mode for different requirement
7. Easy to integrated with magnetic card, barcode card, ID card, IC card, etc
8. Able to remove control by computer
9. Automatic delay reset process 5 second after open
10. Open automatically when power off and close automatically when power on.
11. Sound & light alarm, including illegal break-in alarm, close automatically for reverse entry , etc (Optional)
12. Counting function (optional)
13. Infrared reset function (Optional).
