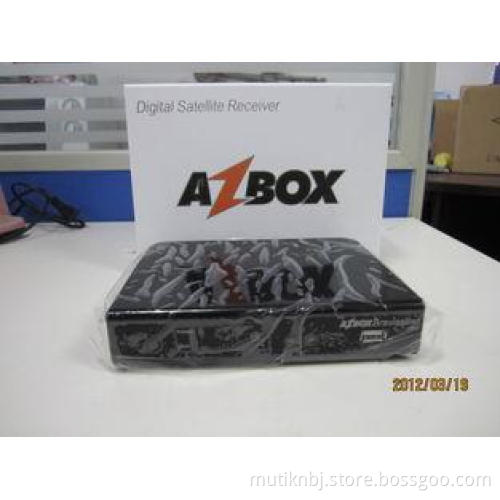

FULL HD 1080P twin tuner Satellite Receiver az box bravissi

FULL HD 1080P AZBOX bravissimo Satellite Receiver / AZ Box decoder with USB and RS232

Model No.: azbox bravissimo twin tuner Satellite receiver with IKS and SKS support Nagra 2 and Nagra 3 , CA, USB PVR, HDMI

FEATURES

Full HD 1080P
Twin tuner
Nagra 3
Wifi
Nagra 3

IKS

SKS

Detailed Product Description

1 SKS and IKS twin tuner satellite receiver vivo for south America Nagra3
1 NAGRA 3
2 SKS and IKS
3 FULL HD 1080P

Specification

1, AZ Box has iks and sks
2,twin tuner , tuner 1 sat amazonas 61w, tuner2 sat hispasat 30w you can see hd chanels and internet
3,the sistems is sks
4,you can use both sistem at the same time
sks=twin tuner, iks=tuner 1 +internet

Receive System IKS channels At the antenna and an Internet connection
With Full HD Technology.
You can write your Movies, Documentaries, Music, Direct in Pendrive.
Eliminates the use of RJ45 Adapter Dongle, as is already built into the unit.
It comes with HDMI output, ready to use on your TV is compatible with this technology!
It has USB and RS232
Accessory main dish (SMB. 003.0X), 42 keys IR controller USB HDD.
Box (client option) card configuration 396mhz MIPS CPU, RAM.
DDR400 128MB Memory Speed 198mhz, 2MB flash series, unique.
Twin Tuner Tuner, DVB-S2 demodulator
Power input 100V --240V 50/60Hz
Power Consumption Max 30 w / w 1 stanby
Receiver DVB-S2 standard (ETSI EN 302 307)
Input Frequency Range 950MHz ~ 2150MHz
Input Level-25dBm ~-65dBm
Demodulation QPSK, 8PSK, 16APSK
Flow of MPEG-2 transport ISO / IEC 13818 Specification Transport Stream
Profile Level MPEG SD MPEG2, MPEG2 SD, HD H-264/AVC, H264/AVC HD
LNB Power & Polarization Vertical 13.5V, Horizontal 18V, Current: 500mA Maximum.
Multi Satellite receiving 22K switcher, DiSEqC 1.0, DiSEqC1.2, USAL
Conditional Access System two common interface slots
output A / V ports YPbPr, CVBS with RCA, SCART with CVBS, HDMI (HDCP), Left / Right saídade analog audio (RCA), digital audio output (SPDIF coax or fiber)
Auto Aspect Ratio box 16:9 Pillar, 4:3 Pan & Scan, 4:3 Letter Box
Decoding MPEG1 Audio Layer I, MPEG1 Layer II, Layer III MPEG1, MPEG2, AC3, AAC, OGG
Audio Mode Stereo / Mono / Left / Right
Support DVR DVR with USB hard disk, Time Shift USB HDD
USB 2.0 Hi-Speed USB 2.0 Host 1 Port, USB Media Player to play media in USB flash disk or hard drive or USB Card Reader with Memory Card
File System FAT12, FAT16, FAT32, NTFS.
Means of BPM Support JPG, MP3, WMA, AAC, OGG
