10ton/day Large Capacity Block Ice Machines For Fishing Industry , Screw Compressor
Quick Detail:
Capacity:10ton/24H
Ice Shape: ice block
Refrigrant:R22/R404A
Control systems:LG/
Ice freezing time:6-10hours
Power supoly:3P-380V-50HZ
Certification: CE
Description:
1. ZB-10T Block Ice Machine Specification:
|
No. |
Block ice specification |
Ice can (PCS) |
Making-ice time (H) |
Qty/24h (PCS) |
Weight (Kg/PC) |
|
1 |
L1000mm*W500mm*H150mm |
200 |
20 |
200 |
20 |
2. ZB-10T Block Ice Machine Operation Condition:
|
1,Max ambient temp. |
+400C |
|
2. Related humidity |
85% |
|
3. Water temp. |
160C |
|
4. Supply power |
380V~420V/3Phase/50Hz |
|
5. Refrigerant |
R22 |
|
6.Compressor |
Screw compressor |
|
7. Cooled mode |
Water cooled |
3. ZB-10T Block Ice Machine Technical date:
|
No. |
Specifiction |
Date |
|
|
1 |
Description |
Block ice machine |
|
|
2 |
Model |
ZB-10T |
|
|
3 |
Qty |
1Set |
|
|
4 |
Daily capacity |
10T/D |
|
|
5 |
Machine weight |
7200kg |
|
|
6 |
Size |
Brine pool:40’(1 PC) |
|
|
7 |
Power line |
40mm²Cu |
|
|
8 |
Refrigerant |
R22 |
|
|
9 |
Evaporative temp. |
-20℃ |
|
|
10 |
Condensing temp. |
+40℃ |
|
|
11 |
Refrigerant capacity |
100kw |
|
|
12 |
Inlet water temp. |
16℃ |
|
|
13 |
Ambient temp. |
35℃ |
|
|
14 |
Compressor
|
Mode |
Screw compressor |
|
Brand |
Taiwan hanbell |
||
|
Model |
RC2-B-Z |
||
|
Power |
47kW |
||
|
Qty |
1 PC |
||
|
19 |
Blender motor power |
5.5KW |
|
|
20 |

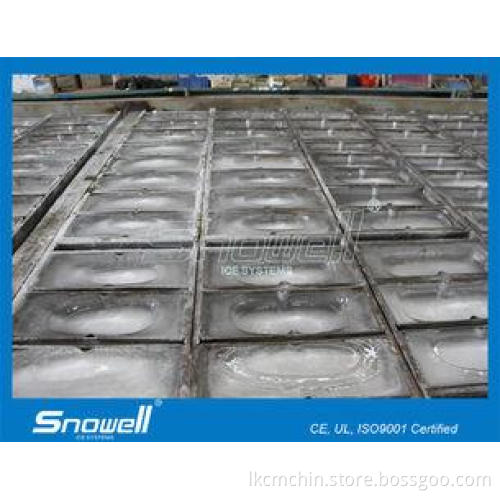

Ice can |
Size |
L1000mm * W500mm*H150mm |
|
Qty |
200PCS |
||
|
Material |
1.5mm galvanized panel |
||
|
21 |
Ice weight |
10kg/pc |
|
|
22 |
Ice temp. |
-14℃ |
|
|
|
Ice density |
900~950kg/m3 |
|
|
23 |
Noise |
72dBA |
|
4. ZB-10T Main Equipment :
|
No |
Description |
Brand |
Origin |
|
1 |
Compressor |
HANBELL |
CHINA |
|
2 |
Evaporator |
Snowell |
CHIAN |
|
3 |
Condenser |
LIANHE |
|
|
4 |
Expansion valve |
DANFOSS |
DANMARK |
|
5 |
solenoid valve |
DANFOSS |
DANMARK |
|
6 |
Electrical equipment |
LS(LG) |
KOREA |
|
7 |
Other refrigeration equipment |
DANFOSS |
DANMARK |
5. ZB-10T Mian Assistance Equipment:
|
No. |
Description |
Qty |
Material |
|
1 |
Lifting crane |
1 PC |
/ |
|
2 |
Automtic pour water device |
1 Set |
Steel panel antisepsis treat |
|
3 |
Automtic out ice device |
1Set |
Steel panel antisepsis treat |
|
4 |
Water pump |
4 PCS |
/ |
|
5 |
Ice clamp |
1 PCS |
/ |
Note:Above date only for reference, The specification date is according to machine require.
Applications:
1.Ice factory at ports and docks;
2.Fresh preservation and cooling of aquatic products;
3.Fresh preservation of aquatic products and foods during line haul;
4.Temperature reduction and cooling in specific fields;
Specifications:
snowell block ice machine
1.Model:ZB-10T
2.Capacity:10ton/day
3.ice weight:20kg
4. SS304 for ice cans and brine tank
Competitive Advantage:
Original refrigeration equipment manufacturer with rich experience;
One-station solution for cold chain equipment;
Adopt famous high quality components to guarantee the quality;
Many successful cases like Wal-Mart, Mexico;
Professional team for solution design, production, installment and after-sale service
