5ton/Day Large Industrial Block Ice Machines With Bitzer Co
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHENZHEN CITY, CHINA |
|---|

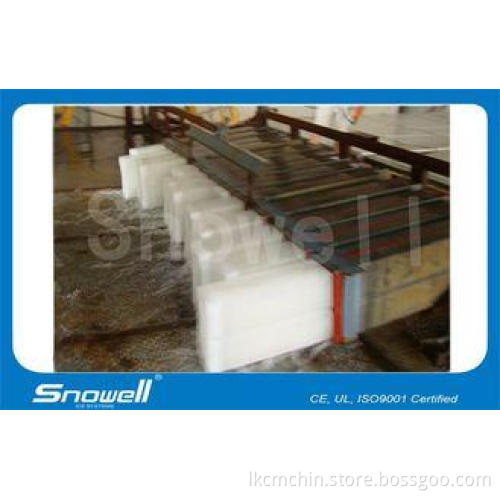

5ton/Day Large Industrial Block Ice Machines With Bitzer Compressor , Water Cooled
Quick Detail:
Capacity:5ton/24H
Ice Shape: ice block
Refrigrant:R22/R404A
Control systems:LG/
Ice freezing time:6-10hours
Power supoly:3P-380V-50HZ
Certification: CE
Description:
|
ZB-5T Block Ice Machine Specification: |
|||||
|
NO. |
Block ice specification |
Ice can (PCS) |
Making-icetime (H) |
Qty/24h (PCS) |
Weight (Kg/PC) |
|
1 |
L200mm*W100mm*H600mm |
126 |
6 |
504 |
10 |
|
ZB-5T Block Ice Machine Operation Condition: |
|||||
|
1,Max ambient temp. |
+400C |
||||
|
2. Related humidity |
85% |
||||
|
3. Water temp. |
160C |
||||
|
4. Supply power |
380V~420V/3Phase/50Hz |
||||
|
5. Refrigerant |
R404A |
||||
|
6.Compressor |
Screw compressor |
||||
|
7. Cooled mode |
Water cooled |
||||
ZB-5T Block Ice Machine Technical date:
|
No. |
Specifiction |
Date |
|
|
1 |
Description |
Block ice machine |
|
|
2 |
Model |
ZB-5T |
|
|
3 |
Qty |
1Set |
|
|
4 |
Daily capacity |
5T/D |
|
|
5 |
Machine weight |
6200kg |
|
|
6 |
Size |
Brine pool:40’(1 PC) |
|
|
7 |
Power line |
40mm²Cu |
|
|
8 |
Refrigerant |
R404A |
|
|
9 |
Evaporative temp. |
-20℃ |
|
|
10 |
Condensing temp. |
35℃ |
|
|
11 |
Refrigerant capacity |
50kw |
|
|
12 |
Inlet water temp. |
16℃ |
|
|
13 |
Ambient temp. |
35℃ |
|
|
14 |
Compressor
|
Mode |
Screw compressor |
|
Brand |
Taiwan hanbell |
||
|
Model |
RC2-B-Z |
||
|
Power |
19kW |
||
|
Qty |
1 PC |
||
|
19 |
Blender motor power |
2.2KW |
|
|
20 |
Ice can |
Size |
L200mm * W100mm*H600mm |
|
Qty |
126PCS |
||
|
Material |
1.5mm galvanized panel |
||
|
21 |
Ice weight |
10kg/pc |
|
|
22 |
Ice temp. |
-14℃ |
|
|
|
Ice density |
900~950kg/m3 |
|
|
23 |
Noise |
72dBA |
|
ZB-5T Main Equipment :
|
No |
Description |
Brand |
Origin |
|
1 |
Compressor |
BITZER |
CHINA |
|
2 |
Evaporator |
SNOWELL |
CHIAN |
|
3 |
Condenser |
LIANHE |
|
|
4 |
Expansion valve |
DANFOSS |
DANMARK |
|
5 |
solenoid valve |
DANFOSS |
DANMARK |
|
6 |
Electrical equipment |
LS(LG) |
KOREA |
|
7 |
Other refrigeration equipment |
DANFOSS |
DANMARK |
ZB-5T Mian Assistance Equipment:
|
No. |
Description |
Qty |
Material |
|
1 |
Lifting crane |
1 PC |
/ |
|
2 |
Automtic pour water device |
1 Set |
Steel panel antisepsis treat |
|
3 |
Automtic out ice device |
1Set |
Steel panel antisepsis treat |
|
4 |
Water pump |
4 PCS |
/ |
|
5 |
Ice clamp |
1 PCS |
/ |
Note:Above date only for reference, The specification date is according to machine require.
Applications:
1.Ice factory at ports and docks;
2.Fresh preservation and cooling of aquatic products;
3.Fresh preservation of aquatic products and foods during line haul;
4.Temperature reduction and cooling in specific fields;
Specifications:
snowell block ice machine
1.Model: ZB-5T
2.Capacity: 5ton/day
3.ice weight:10-50 kg
4. SS304 for ice cans and brine tank
Competitive Advantage:
Original refrigeration equipment manufacturer with rich experience;
One-station solution for cold chain equipment;
Adopt famous high quality components to guarantee the quality;
Many successful cases like Wal-Mart, Mexico;
Professional team for solution design, production, installment and after-sale service
