Full Automatic Block Ice Machines Large Poduction Capacity
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHENZHEN CITY, CHINA |
|---|

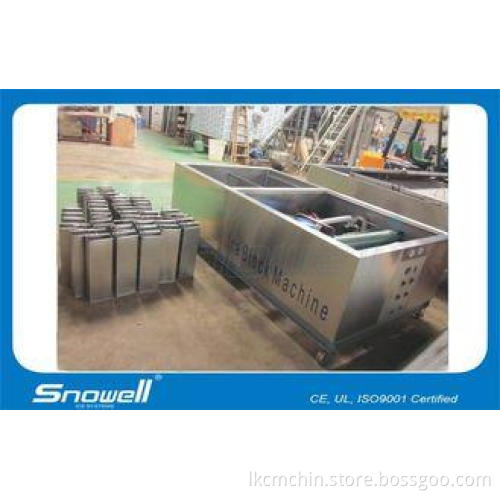

Full Automatic Block Ice Machines Large Poduction Capacity , Stainless Steel 1ton/24H
Quick Detail:
Capacity:1ton/24H
Ice Shape: ice block
Refrigrant:R22/R404A
Control systems:LG/
Ice freezing time:4-8 hours
Power supoly:3P-380V-50HZ
Certification: CE
Description:
1. Block ice machine ZB-1T block size:
|
S/N |
Block size |
Ice can (PCS) |
Ice making time (H) |
Qty/24h (PCS) |
Weight (Kg/PC) |
|
1 |
100*800*160 |
25 |
5.5 |
100 |
10 |
2. ZB-1T Machine’s operation condition:
|
1. Maximum ambient temperature |
+400C |
|
2. Relative humidity |
85% |
|
3. Designed temperature of water supply |
160C |
|
4. Power supply situation |
380V~420V/3Phase/50Hz |
|
5. Refrigerant |
R22/R404A |
|
6. Compressor |
Scroll compressor |
|
7. Cooling system |
Air cooled |
|
8. The unit form |
Integrated |
3. ZB-1T Property parameter table of Ice machine:
|
S/N |
Parameter |
Date |
|
|
1 |
Name |
Ice block machine |
|
|
2 |
Model |
ZB-1T |
|
|
3 |
Quantity |
1 set |
|
|
4 |
Daily capacity |
1ton/day |
|
|
5 |
Machine weight |
900kg |
|
|
6 |
Machine size |
1650mm*605mm*700mm(1set) |
|
|
7 |
Power line |
10mm²Cu |
|
|
8 |
Refrigerant |
R22/R404A |
|
|
9 |
Evaporating temperature |
-20℃ |
|
|
10 |
Condensing temperature |
+40℃ |
|
|
11 |
Refrigeration capacity |
8kw |
|
|
12 |
Water inlet temperature |
16℃ |
|
|
13 |
Ambient temperature |
25℃ |
|
|
14 |
Compressor parameter
|
Compressor type |
Scroll compressor |
|
Brand |
Copeland |
||
|
Power |
6HP |
||
|
Qty |
1 set |
||
|
15 |
Ice can |
Size |
100mm*800mm*160mm |
|
Qty |
25 pcs |
||
|
Material |
1.5mm stainless steel |
||
|
16 |
Ice block weight |
10kg/pc |
|
|
17 |
Ice block temperature |
-14℃ |
|
|
18 |
Ice block density |
900~950kg/m3 |
|
|
19 |
Noise |
78dBA |
|
4. ZB-1T Main configuration table:
|
Item |
Part name |
Brand |
Original place |
|
1 |
Compressor |
COPELAND |
USA |
|
2 |
Evaporator |
SNOWELL |
CHINA |
|
3 |
Air cooled condenser |
COOLER |
|
|
4 |
Expansion valve |
ALCO |
Danmark |
|
5 |
Solenoid valve |
DANFOSS |
Danmark |
|
6 |
Electrical components |
LS(LG) |
Korea |
|
7 |
Other refrigeration parts |
DANFOSS |
Danmark |
Applications:
1.Ice factory at ports and docks;
2.Fresh preservation and cooling of aquatic products;
3.Fresh preservation of aquatic products and foods during line haul;
4.Temperature reduction and cooling in specific fields;
Specifications:
snowell block ice machine
1.Model:ZB-1T
2.Capacity:1ton/day
3.ice weight:10 kg
4. SS304 for ice cans and brine tank
Competitive Advantage:
Original refrigeration equipment manufacturer with rich experience;
One-station solution for cold chain equipment;
Adopt famous high quality components to guarantee the quality;
Many successful cases like Wal-Mart, Mexico;
Professional team for solution design, production, installment and after-sale service
