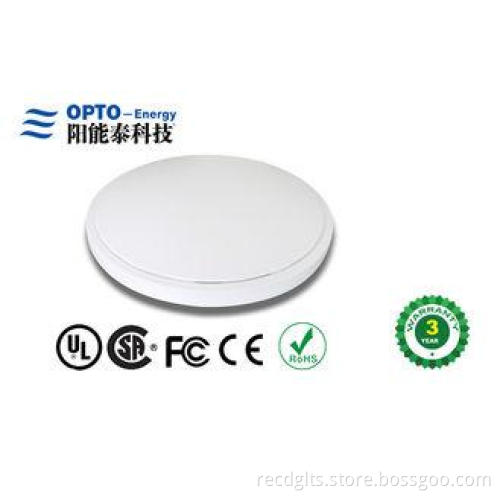

Cool Wihte 18W Recessed Led School Ceiling Light , Bath Ceiling Light Fixtures
Features:
Cheap price for 18W Recessed LedCeiling Light for office Lighting
Input Voltage: AC85-265V
Power Factor≥0.9
Finished Diameter: 360mm
Diameter: 320mm
Led Type: SMD 2835
Flux: ≥1300lm
Led Qty: 132pcs
Watt: 18W
Certification: SAA, CE, Rohs
Looking for Recessed Ceiling Light for Led Retrokit Kits Ceiling Light
Our Recessed Led Ceiling Lights are top quality with Cheap Price
Our Led Ceiling Light is best choice for your Recessed CeilingLight
Recessed LedCeiling Light ShenZhen, China Factory
Specification:
Led: High Brightness SMD2835
CRI::≥70Ra
Beam Angle: 160 Degrees
Recessed Led Ceiling Light Cover Materials: Acrylic (Uniform Color/Anti Glare)
Working Temperature: -20℃~+45℃
Operating Humidity: 20%-90%
Bottom Base Diameter: Dia220mm, 260mm, 320mm, 400mm for your optional
Led Life span: Above 50000 Hours
Technical Parameter:
|
|
Dia(mm) |
Technical Parameter |
|||
|
220mm |
260mm |
320mm |
400mm |
||
|
Input Voltage |
V |
AC85-265V |
|||
|
Frequency |
Hz |
50/60Hz |
|||
|
Input Power |
W |
7±1 |
13±1.3 |
17±1.8 |
25±2.5 |
|
Power Factor |
PF |
≥0.9 |
≥0.92 |
≥0.92 |
≥0.92 |
|
THD |
% |
≤15% |
≤15% |
≤15% |
≤15% |
|
Led Driver |
Isolated |
||||
|
Power Efficiency |
% |
88 |
88 |
90 |
90 |
|
Output Voltage |
V |
21-24 |
36-42 |
24-28 |
36-42 |
|
Current Output |
mA |
300 |
300 |
600 |
600 |
|
Led Type |
SMD2835 |
||||
|
Led Qty |
pcs |
48 |
72 |
99 |
132 |
|
Luminous Flux |
LM |
≥650 |
≥1050 |
≥1450 |
≥1900 |
|
CRI |
Ra |
≥70 |
≥70 |
≥70 |
≥70 |
|
Color Temperature |
K |
3000-6500k |
|||
|
Angle |
° |
160 |
160 |
160 |
160 |
|
Bottom Size |
mm |
￠220*17 |
￠260*17 |
￠320*17 |
￠400*17 |
|
Finished size |
mm |
￠260*90 |
￠300*100 |
￠360*110 |
￠440*120 |
|
Net Weight |
kgs |
0.5 |
0.6 |
0.8 |
1.3 |
|
Package size |
mm |
31*11*31 |
31*11*31 |
37*12*37 |
46*13*46 |
|
CTN Measure |
mm |
68*33*66 |
68*33*66 |
74*39*78 |
67*48*94 |
Recessed Ceiling Light for Advantages:
High Brightness SMD 2835 as Lighting Source
Isolated Led Driver
High Power Factor
Fast & Easy to install Led Ceiling Light
Cheap and Fashional Design
Energy saving up 85% compare with Traditional Recessed Ceiling Lights.
Produts Details for Ceiling Liight:
