Light Duty Pipe Welding Equipment for Tank , Boiler Seam Weld Manipulators
Quick Details:
Type:Welding rotator/Welding turning rolls/Pipe welding rotator
Brand:Sunny
Condition:100% brand new
Model number:HGZ/HGK
Place of origin:Wuxi China(Mainland)
Usage:Welding
Voltage:110V-600V
Color:Yellow/Blue/Grey
Dimensions and weight:According to the model
Kindly Noted:
1.Model from ZH-1515-ZH8080, please confirmed before you order.
2.Three structure of the column and boom :Stationary ; Stationary and revolve ; Moving and revolve , Please confirmed before you order.
3.Voltage standard is 380V , 50HZ , 3PH. We can customized other voltage
4.We can design that the electric box control ,the manipulator and rotator together
5.With cross turning for the welding head.
6.We could equip Welding machine(SAW,TIG,MIG) and flux recovery machine.
Description:

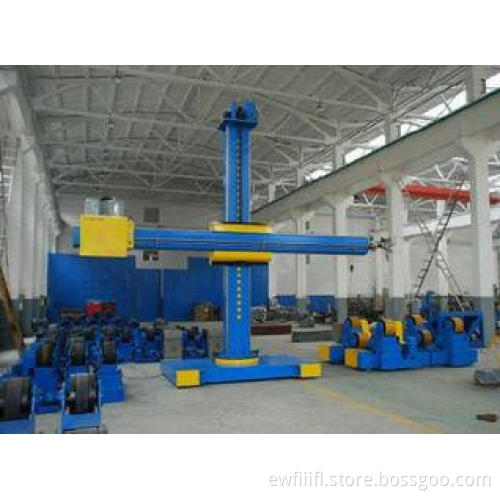

ZH Type welding manipulator(Welding column and boom) , we provide three structure of welding manipulator for our clients: Stationary, Stationary and revolve, Moving and revolve. It is mainly used to offer firm support for high-precise welding, and can be also used for welding boiler,pressure vessel, wind towers, pipe welding, etc .Welding manipulator can reach both of the inside small internal diameters and the outside of big diameters in order to weld circumferential joints as well as longitudinal joints.
Applications:
Welding Manipulator is used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.With welding rotator,welding positioner ,it could made up of welding center.
Specifications:
|
|
Boom |
Column |
Traveling cart |
|
|
|
Vertical stroke(A)m |
Horizontal stroker(B)m |
Elevation speed m/min |
Traverse speed m/min |
Max load at extremity kg |
Total height(C)m |
Dimensions |
Rail c to c(F)mm |
Power KW |
|
ZH1515 |
1.5 |
1.5 |
0.3 |
0.12~1.2 |
100 |
2.9 |
1.25×1.2×0.2 |
1052 |
0.91 |
|
ZH2020 |
2.0 |
2.0 |
0.3 |
100 |
3.4 |
1.25×1.2×0.2 |
1052 |
0.91 |
|
|
ZH3030 |
3.0 |
3.0 |
1.0 |
200 |
5.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
ZH3040 |
3.0 |
4.0 |
1.0 |
200 |
5.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
ZH4040 |
4.0 |
4.0 |
1.0 |
200 |
6.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
ZH4050 |
4.0 |
5.0 |
1.0 |
200 |
6.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
ZH5050 |
5.0 |
5.0 |
0.9 |
300 |
7.8 |
2.6×2.1×0.5 |
1798 |
3.5 |
|
|
ZH5060 |
5.0 |
6.0 |
0.9 |
300 |
7.8 |
2.6×2.1×0.5 |
1798 |
3..5 |
|
|
ZH6060 |
6.0 |
6.0 |
0.9 |
300 |
9.7 |
2.6×2.1×0.5 |
1798 |
3.5 |
Draft drawing:
Competitive Advantage:
1. Cross section of boom and column are rectangular-section beams , with double-rail , welded into sharp , stress relieved and mechanical machined finely ,ensuring higher precision
2. Drooping of boom along horizontal travel is 2mm/m
3. With cross turning for the welding head
4. Testing before delivery
Brand using:
﹡Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa
﹡Motor Brand is UK Invertek /Taiwan Qinwei / Siemens
﹡Element is made by Schneider /Siemens/Fuji
﹡Reducer is made by Kaibo/Guomao
﹡Bearing is made by NTN / Harbin
Standard package :
- Welding manipulator and traveling cart
- Vertical and horizontal boom movement / Trolley motion
- Operation manual
Installation and commissioning:
If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
Why always Sunny?
1. 360°guarantee makes ordering risk free.
2. 20 years welding machine manufacture experiences.
3. one-stop service of welding.
4. OEM service.
5. Quickly feedback for your problems.
