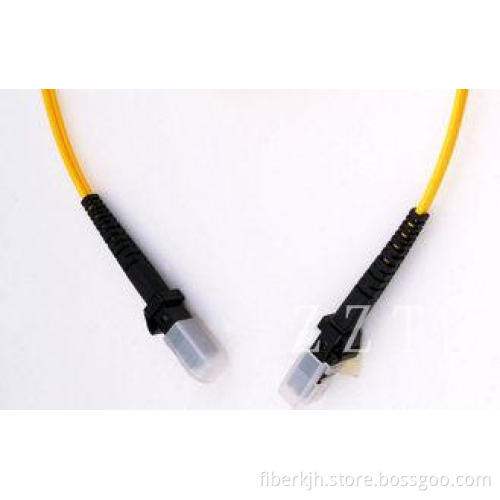

FTTX MTRJ Fiber Optic Patch Cord High Return Loss With Draka Fiber
Quick Detail:
MTRJ/UPC, MTRJ/PC fiber optic patch cords, in single mode 9/125 and multimode 50/125, 62.5/125: OS1, OS2, OM1, OM2, OM3,OM4 fibers are available, cable outer diameter can be 0.9mm, 1.6mm, 2.0mm, 2.4mm and 3.0mm, jacket can be LSZH, PVC, OFNR and OFNP.
Applications:
Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss and high Return Loss
Varieties of Cable Assemblies
RoHS Compliance
Coring fiber, Draka fiber and YOFC fiber are available
Specifications:
|
|
SM |
MM |
|||
|
9/125 |
50/125 |
62.5/125 |
OM3 OM4 |
||
|
UPC |
APC |
PC |
|||
|
Insertion loss |
≤0.2dB |
≤0.3dB |
|||
|
Return loss |
≥50dB |
≥60dB |
≥35dB |
||
|
Durability |
1000 times, ≤0.2dB |
1000 times, ≤0.3dB |
|||
|
Working Tem. |
-40 to +80℃ |
||||
|
Storage Tem. |
-40 to +80℃ |
||||
|
Endface Geometry |
|||||
|
Parameter |
2.5μmm Ferrule |
1.25μmm Ferrule |
|
||
|
UPC |
APC |
UPC |
APC |
|
|
|
Radius of Curvature |
10~25mm |
5~12mm |
7~25mm |
5~12mm |
|
|
Apex Offset |
0~50μm |
0~50μm |
0~50μm |
0~50μm |
|
|
Fiber Height |
-100~50nm |
-100~100nm |
-100~50nm |
-100~100nm |
|
|
Angle |
|
7.7-8.3degree |
|
7.7-8.3degree |
|
|
3D Geometry |
|
|
|
|
|
Environmental and Mechanism
|
Mechanical Properties |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz,1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB Change |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB Change |
|
Cable retention |
Magnitude 90N |
IEC61300-2-4 |
≤0.2dB Change |
|
Cable torsion |
1.5kg-2.5kg for 2mm-3mm diameter |
IEC61300-2-4 |
≤0.2dB Change |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB Change |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB Change |
|
Temperature Cycling |
-40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB Change |
|
Temperature humidity cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB Change |
