IEEE 802.3u Wired DSL Modem ADSL ITU-T G .992.3 , 24Mbps Downstream

Description

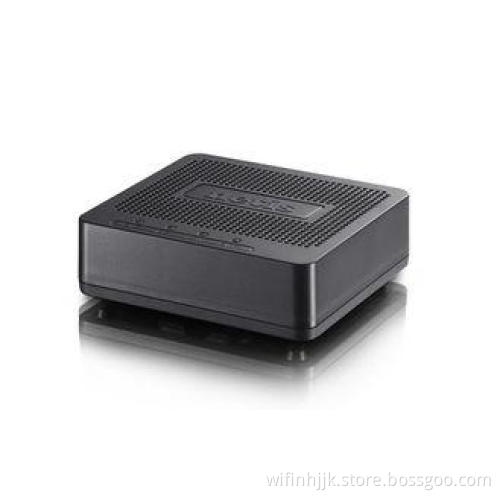

The netis DL4201 Wired ADSL2+ Modem Router is a high performance modem router that provides a full rate of ADSL2+ standard. It is a 2 in 1 device that combines the function of a high-speed DSL modem and a one-Port 10/100Mbps router. With the built-in Quick Start Wizard, you can easily create a secure and high-speed wired network to share files, music, photos, and printers with multiple computers.

Specifications

Hardware
Interface	1 * 10/100M Auto MDI/MDIX RJ45 1*RJ11
LED	Internet ADSL LAN Power
Power Supply	DC 5V/0.8A(Output)
Dimensions (L x W x H )	72mm X 69mm X 25mm

Software
Standards	IEEE 802.3,IEEE 802.3u
Data Rate	Downstream: Up to 24Mbps Upstream: Up to 1Mbps
ADSL Feature	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.992.3 ITU-T G .992.5 ITU-T K.2.1
ATM / PPP Protocols	ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225)
Main Features	DHCP, DHCP relay NAT, Static Routing VPN (PPTP, L2TP, IPSec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP snooping V1/V2 Virtual server, DMZ, ACL (Access Control List) UPnP
Management	Web Based Configuration (HTTP), Remote management, Telnet management, command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools

Others
Certification	CE FCC
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
Package	1 * DL4201 1 * Quick Installation Guide 1 * Power Adapter 1* Ethernet Cable 2* RJ11 cable 1* Splitter

Competitive Advantage:

Provides Quick Start Wizard to help you set up your network in Minutes

Slim body design.Idea for home and office use

2 in 1: Combine ADSL2/2+ Modem and Router in a single device

LEDs indicate port activity
