Gigabit Ethernet Switches IEEE 802.3az With 16 RJ45 Port
Description:

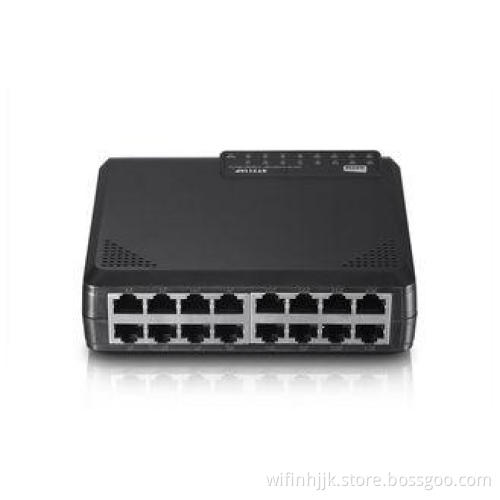

The netis ST3116P Fast Ethernet Rackmount Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports .It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The 16 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
Specifications:
|
Hardware |
|
|
Interface |
16 * 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1X-16X |
|
Power Supply |
DC 9V/500mA(Output) |
|
Dimensions (L x W x H ) |
230 x 230 x 70 mm |
|
Switching Features |
|
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Data Transmission Rate |
10/100Mbps(Half-duplex) |
|
Switching Fabric Capacity |
3.2Gbps |
|
Jumbo Frame |
2KB |
|
MAC Address Table |
8K, auto-learning & auto-aging |
|
Others |
|
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1 * ST3116P |
Competitive Advantage:
Supports Jumbo frame
Supports 8K MAC address table
3.2 Gbps Switching Capacity
Fanless design to make sure it works quietly without disturbing the department or office use
16 10/100Mbps RJ45 ports
Supports MAC address self-learning and auto MDI/MDIX
Green Ethernet technology link down power saving and link on various cable length power saving
Plug and play, no configuration required
