8000W high frequency welding and cutting machine for Bliste
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

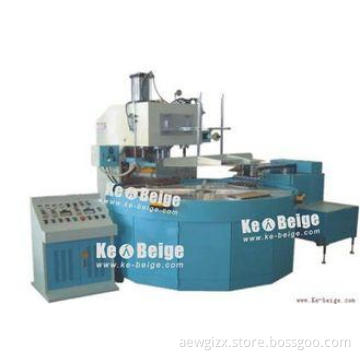

8000W high frequency welding and cutting machine for Blister packing, plastic box making
Application:
Widely using in Blister Packing , toothbrush packing, plastic box making, plastic products welding with APET, PETG, GAG EVA, PP etc. environmental protection materials, also suitable for the products which need to welding / sealing and cutting at the same time ( simultaneously).
High Frequency Welding and Cutting MachineFeatures:
■ Automatic slipway, back-forth or continuous delivering the mould,
accurate orientation, error±20um.
■ Adjustable cutting pressure 1-80 ton, stable and reliable in output, firm in structure.
■ Adopting high sensitive anti-sparkle device to avoid damaging the mould efficiency.
■ Operation mode: non-pneumatic or pure-pneumatic.
High Frequency Welding and Cutting MachineSpecifications:
|
MODEL |
KBG-5000WR |
KBG-8KWR |
KBG-15KWR |
KBG-25KWR |
|
POWER |
5000W |
8000W |
15KW |
25KW |
|
POWRR SUPPLY |
220V/380V 50/60HZ |
|||
|
FREQUENCY |
27.12MHZ |
13.56MHZ |
||
|
INPUT POWER |
8KVA |
15KVA |
25KVA |
35KVA |
|
RECTIFIER |
SILICON DIODE |
|||
|
VACUUM TUBE |
7T85RB |
7T69RB |
8T85RB |
8T25RB |
|
MAXPRESSURE |
5T/10T |
10T/15T |
20T |
30T |
|
MAX GAP OF ELECTRODES |
200MM |
|||
|
SIZE OF ACTIVE HORN |
150MM |
|||
|
SIZE OF UP ELECTRODE |
300*400 |
350*500 |
600*800 |
700*800 |
|
SIZE OF DOWN ELECTRODE |
400*500 |
450*600 |
700*900 |
800*900 |
|
RANGEOF TEMPERATURE |
30~200℃ Adjustable |
|||
|
WELDING TIME |
0~10S Adjustable |
|||
|
PRODUCTIVITY |
≦5000times/8h |
|||
|
NET WELGHT |
1T |
1.5T |
2.5T |
3T |
|
DIMENSION |
1920Х1200Х2060 |
1920Х1200Х12060 |
2650Х2550Х2240 |
2850Х2550Х2440 |
