Basic Info

Place of Origin:	China

Product Description

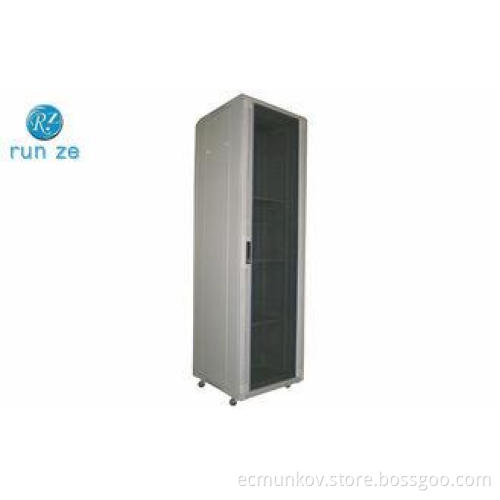

IP20 Cold Rolled Steel Network Equipment Cabinet 18U 22U 25U 27U

Feature:

Exquisite design with precise craftsmanship;

Welded steel frame for front and back part, can be flat packing, easy to transfer;

Tempered glass front door with over 180 turning degree; vented front door border;

Steel rear door with little round lock, optional other lock;

Removable side panel with latch, easy to install, optional lock;

Adjustable feet and castors sre available simultaneously;

Cable entry on the top, adjustable cable entrance at the bottom with panel;

Advanced handle locks for front door, optional other lock;

S-shaped mounting profile, free to move forward and back;

Efficient baying kit of cabinet, Earthing kit

Optional plinth to fix cabinet on the floor; under base cable entry;

Various optional accessories for common using;

Unassembled packing, about 2/5 of original volume, save container space;

Applications:

Used in communication industry

Competitive Advantage:

1.Reliable sealing
2.Water-proof and Damp-proof
3.Easy Installation
4.Compact Structure

5.Mainly customers: CMCC,ZTC ,HUAWEI

Standard:	Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART 7, ETSI Standard
Offer network/server cabinet/rack	6U,9U,12U,18U,22U,25U,27U,32U,42U,45U,47U,48U....
Material	SPCC quality cold rolled steel
Others	SPCC quality cold rolled steel
Thickness
Mounting profile	2.0mm
Mounting angle	1.5mm
other	1.2mm
Loading Capacity	Static loading: 800kg (on the adjustable feet)
Degree of protection	IP20
Surface finish	Degreaseing, Pickling, Phosphating, Powder Coated

Model Information:

Model No.	Capacity (U)	Width × Depth (mm)	Model No.	Capacity (U)	Width × Depth (mm)
LK-CB-JA6618	18	600 × 600	LK-CB-JA6637	37	600 × 600
LK-CB-JA6818		600 × 800	LK-CB-JA6837		600 × 800
LK-CB-JA6918		600 × 900	LK-CB-JA6937		600 × 900
LK-CB-JA6018		600 × 1000	LK-CB-JA6037		600 × 1000
LK-CB-JA6622	22	600 × 600	LK-CB-JA6642	42	600 × 600
LK-CB-JA6822		600 × 800	LK-CB-JA6842		600 × 800
LK-CB-JA6922		600 × 900	LK-CB-JA6042		600 × 1000
LK-CB-JA6022		600 × 1000	LK-CB-JA6242		600 × 1200
LK-CB-JA6627	27	600 × 600	LK-CB-JA6645	45	600 × 600
LK-CB-JA6827		600 × 800	LK-CB-JA6845		600 × 800
LK-CB-JA6927		600 × 900	LK-CB-JA6045		600 × 1000
LK-CB-JA6027		600 × 1000	LK-CB-JA6245		600 × 1200
LK-CB-JA6632	32	600 × 600	LK-CB-JA6647	47	600 × 600
LK-CB-JA6832		600 × 800	LK-CB-JA6847		600 × 800
LK-CB-JA6932		600 × 900	LK-CB-JA6047		600 × 1000
LK-CB-JA6032		600 × 1000	LK-CB-JA6247		600 × 1200

Model No.	Capacity (U)	Width × Depth (mm)	Model No.	Capacity (U)	Width × Depth (mm)
LK-CB-JA8618	18	800 × 600	LK-CB-JA8637	37	600 × 600
LK-CB-JA8818		800 × 800	LK-CB-JA8837		600 × 800
LK-CB-JA8918		800 × 900	LK-CB-JA8937		600 × 900
LK-CB-JA8018		800 × 1000	LK-CB-JA8037		600 × 1000
LK-CB-JA8622	22	800 × 600	LK-CB-JA8642	42	600 × 600
LK-CB-JA8822		800 × 800	LK-CB-JA8842		600 × 800
LK-CB-JA8922		800 × 900	LK-CB-JA8042		600 × 1000
LK-CB-JA8022		800 × 1000	LK-CB-JA8242		600 × 1200
LK-CB-JA8627	27	800 × 600	LK-CB-JA8645	45	600 × 600
LK-CB-JA8827		800 × 800	LK-CB-JA8845		600 × 800
LK-CB-JA8927		800 × 900	LK-CB-JA8045		600 × 1000
LK-CB-JA8027		800 × 1000	LK-CB-JA8245		600 × 1200
LK-CB-JA8632	32	800 × 600	LK-CB-JA8647	47	600 × 600
LK-CB-JA8832		800 × 800	LK-CB-JA8847		600 × 800
LK-CB-JA8932		800 × 900	LK-CB-JA8047		600 × 1000
LK-CB-JA8032		800 × 1000	LK-CB-JA8247		600 × 1200
