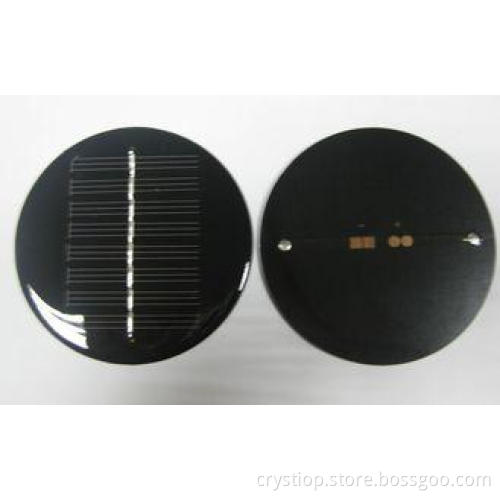

Round 4V 100mA Laminated Monocrystalline Solar Module For S

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Materials	PET, EVA, solar cell, EVA, PCB	Solar Cell Type	Mono
Peak Voltage(Vmp)	4V	Peak Current (Imp)	100mA
Open Circuit Voltage (Voc)	4.8V	Short Circuit Current (Isc)	110mA
Dimension	D92.6 x 2.8mm	Maximum Power	528mW

Widely Applied in Solar Torch, Solar Flashlight, 4V 100mA Laminated Solar Cells

1> Quick Detail:

Place of Origin: China
Brand Name: ZOCEN
Model: ZCD92.6
Certificate: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001

2> Discription

This small easy-to-use PET lamination solar cell would be a great addition to your next solar powered project. This solar cell provides approximately 5V DC in direct sunlight at up to 1.5W. Multiple units can be chained serial or parallel to increase voltage and current.

PET Laminated small solar panel which is laminating by a machine at a temperature of 135 degree, then all the material will be melted together, you will see the layouts as below,

1. PET

2. EVA

3. Solar cell

4. EVA

5. PCB

it is more suitable for outdoor solar lights.

Application: Solar toys, solar lawn light, solar charger, solar torch, solar flashlight etc.

3> Zocen Overview

Zocen People

2.2MW Solar Project Located on the Roof of Our Own Factory
