Black Custom Shaped 1000VDC big Double Glass Solar Panel 10
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
| Place of origin | China(Mainland) | Brand name | ZOCEN |
| Model | ZCBIPV-180 | Materials | 125*125mm Mono solar cell |
| Size | 1000X1700mm | Number of Cells | 72pcs(6*12) |
| Max. Power | 265W | Positive tolerance | +3% |
What is BIPV?
Building-Integrated Photovoltaics (BIPV) are photovoltaic systems which are built into a building, rather than being added on at a later date. Ideally, BIPV are incorporated into the design of a building in the early planning stages. The architect works with photovoltaic engineers and other experts to create a design which will be aesthetically pleasing and effective.

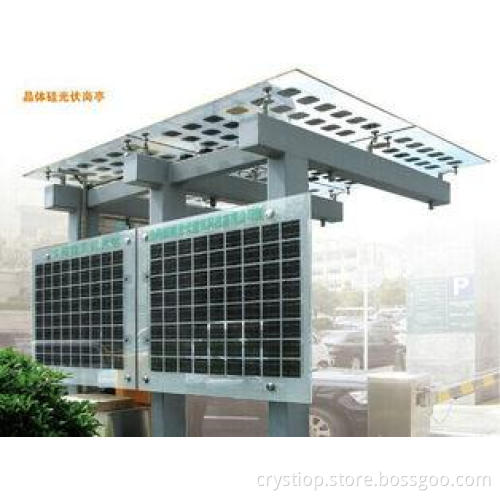

BIPV Applications
> Roof, Skylight, Facade, Sunshade, Balustrade, Floor
> Point-fixed System, Visible Frame, Semi-visible Frame, Invisible Frame
> Residential, Commercial, Public Buildings
> New and Existing Construction
> On-grid Utility and Commercial Systems
Features of Transparent Solar Panel
> Glass-glass module is employed directly as materials of spandrel, cladding, roof improving appeal visually
> Sandwiched high efficiency cells gives robust performance
> Top quality EVA interlayer ensures product warranty and safety
> Frameless, tailor-made specification, variable light transmission and multi-color option enable architectural design freely
Description:
> Product name: Transparent PV double glass solar panel / module
> Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
> Tempered Glass: Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
> EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
> Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water , it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
> Junction Box: IP67 rated, 3 bypass Diodes + 90cm 4mm2 Solar Cable
> Life time: 25 years
> Power specification at 1kW/m 2, AM 1, 5
> Output cable: multi contact connectors
> Resistance: 277 steel ball falls down from 1m height and 60m/s wind
> Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
> Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO
Features:
> More than 7 years experience of solar module encapsulation
> fully germany automatic welding machine and lay-up
> CHUBB insurance company to guarantee the quality of our products
> 100% EL TEST before and after laminator
> Annual capacity: 200mw/year, which is Full Automatic Production Line, from single cell soldering to framing are all performed by equipments. Our total capacity is scheduled to reach 500mw/year until 2015.
> 31MW solar module have been used in Chinese major grid-connected projects.
> Own 45 patents and 3 module production bases in different cities.
> So we guarantee each piece of our panel has perfect appearance, positive power performance, and without quality hidden trouble.
Electrical Characteristics
| Maximum Power(Pmax) | 180W |
| Power Tolerance | ±3% |
| Open Circuit Voltage(Voc) | 44.70 |
| Short Circuit Current(Isc) | 5.23 |
| Maximum Power Voltage(Vmp) | 36.50 |
| Maximum Power Voltage(Imp) | 4.93 |
| Transparence | 40% |
| Glass thickness | 4mm+PVB+cell+PVB+4mm |
| Module Efficiency | 18.76% |
| Max. System Voltage | 1000VDC |
| Cell Size and Series | Mono-crystalline 156*156mm(6 inch) 60pcs(6*10) |
| Bypass Diodes | 3pcs 12A |
| Temperature Coefficients of Pmax | -0.44%/℃ |
| Temperature Coefficients of Voc | -0.33%/℃ |
| Temperature Coefficients of Isc | 0.055%/℃ |
| NOTC-Nominal Operating Cell Temperature | 45℃(±2℃) |
| STC Condition | Irradiance level 1,000W/P㎡, Spectrum AM1.5, and Cell Temperature 25℃ |
Mechanical Characteristics
| Dimension(mm) | 1000*1700*10mm |
| Frame | Black Anodized Aluminum Alloy |
| Construction |
Front: High transmisiion 3.2mm Tempered glass Rear: Black polyester; Encapsulant: EVA |
| Output cables |
4.0m㎡ 12AWG CABLE WITH WEATHERPROOF CONNECTORS. Cable lengths 900mm |
| Weight | 45.00KGS |
