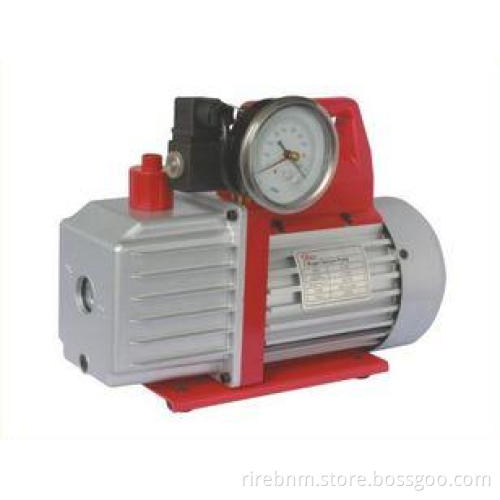

Rotary vane vakuum pump
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
Specification
| Products Name | Model | Displacement | Ultimate Partial Pressure | Ultimate Total Pressure | Motor Power | Cooling |
| Rotary Vane Vacuum Pump | 2X-4 | 4L/s | 0.05 Pa | 1 Pa | 0.55 kW | Air Cooled |
Features
1.Good quality guarantee
2.High reputation
3.Pretty competitive price
4.Quick delivery time
5.Friendly service attitude
Packaging & Delivery
Packaging: Polywood case
Delivery: according to the quantity customers ordered
Overview
2X Sliding Vane Rotary Vacuum Pump is one of the basic equipment for obtaining vacuum for airtight containers by exhausting gas. It can be used alone, or used as the fore pump in front of the booster pump, diffusion pump, molecular pump, etc. This pump is applicable to the vacuum metallurgy, vacuum welding, vacuum impregnation, coating, vacuum drying, as well as the vacuum treatments in chemical and pharmaceutical industry, electric vacuum devices and other industries.
Notices
1. The pump can work within the ambient temperature range of 5~40 and under the inlet pressure less than 1330PA. It is also allowable for long-term continuous work.
2. The pump is neither applicable to pump the gases which have excessive oxygen content, poisonous and explosive feature, corrosive effects to etals and chemical reactions with oil of pumps, and dust particles, nor act as a transfer pump to transfer gas form one container to another.
3. The continuous working hours of the pump under the inlet air pressure of 6000PA shall not exceed 3min to avoid damages caused by oil injection or bad lubrication.
Certificate
Performance Parameters
| Model | 2X-4A | 2X-8A | 2X-8 | 2X-15 | 2X-30A | 2X-70A |
| (L/S) Pumping Speed | 4 | 8 | 8 | 15 | 30 | 70 |
| (≤ Pa) Ultimate Pressure | ≤ 6× 10 -2 | |||||
| (kw) Motor Power | 0.55 | 1.1 | 1.1 | 2.2 | 3 | 5.5 |
| (Degrees C) Temperature Rise | ≤ 4 Degrees C | |||||
| dB(A) LW Noise | ≤ 75 | ≤ 78 | ≤ 78 | ≤ 80 | ≤ 82 | ≤ 86 |
| (mm) Inlet Diameter | Φ 25 | Φ 25 | Φ 40 | Φ 40 | Φ 65 | Φ 80 |
| (rpm) Rotational Speed | 450 | 550 | 320 | 320 | 450 | 420 |
| (L) Injection Amount of Oil | 0.7 | 0.9 | 2 | 2.8 | 2 | 4.2 |
| (cm) Size | 55× 34× 41 | 55× 43× 44 | 79× 43× 54 | 79× 53× 54 | 78× 50× 56 | 91× 65× 70 |
| (Kg) Weight | 54 | 70 | 135 | 196 | 240 | 428 |
