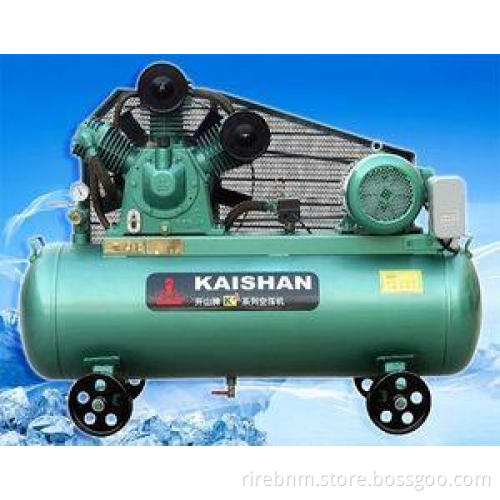

11kw 43CFM Portable Piston Air Compressor With Motor Driven
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
11kw 43CFM Portable Piston Air Compressor With Motor Driven
Quick Detail:
Model:KAH-25
Capacity:1.22m3/min 43cfm
Motor power:15hp/11kw
Cylinder liner:¢155*2 ¢100*1
Air tanl: 450L
Weight:700kg
Size:1850*850*1500mm
Description:
1.Ensure low oil consumption
2.Durable service
3.Suitable for 24 hours work
Applications:
This series air compressor widely used in pneumatic lock , pneumatic tool , tire inflation , blowing precess, spray paint, sand blasting and fluidic element.
Specifications:
|
Model |
Motor |
Cylinder
|
Displacement M3/min |
Exhaust Pressure Mpa |
Gas tank |
Weight (kg) |
Dimension |
|
|
KA-30 |
30/22 |
LP155×2 |
3 |
0.8(8) |
0.45 |
700 |
1900×850×1400 |
|
|
KA-25 |
25/18.5 |
LP155×2 |
2.5 |
0.8(8) |
0.45 |
700 |
1800×800×1370 |
|
|
KA-20 |
20/15 |
120×3 |
2 |
0.8(8) |
0.35 |
600 |
1800×800×1300 |
|
|
KA-15 |
15/11 |
120×3 |
1.51 |
0.8(8) |
0.3 |
500 |
1635×700×1220 |
|
|
KA-10 |
10/7.5 |
100×3 |
1 |
0.8(8) |
0.23 |
400 |
1554×650×1140 |
|
|
KA-7.5 |
7.5/5.5 |
100×2 |
0.67 |
0.8(8) |
0.18 |
280 |
1368×560×1050 |
|
|
KA-5.5 |
5.5/4 |
80×3 |
0.52 |
0.8(8) |
0.18 |
215 |
1425×560×1011 |
|
|
KA-4 |
4/3 |
80×2 |
0.4 |
0.8(8) |
0.13 |
175 |
1310×500×960 |
|
|
KA-3 |
3/2.2 |
80×2 |
0.3 |
0.8(8) |
0.13 |
175 |
1310×500×960 |
|
|
KAH-30 |
30/22 |
LP155×2 |
2.5 |
1.25(12.5) |
0.45 |
700 |
1900×800×1400 |
|
|
KAH-25 |
25/18.5 |
LP155×2 |
2.2 |
1.25(12.5) |
0.45 |
700 |
1800×800×1370 |
|
|
KAH-20 |
20/15 |
LP120×2 |
1.8 |
1.25(12.5) |
0.35 |
600 |
1800×800×1370 |
|
|
KAH-15 |
25/11 |
LP155×2 |
1.22 |
1.25(12.5) |
0.3 |
500 |
1635×670×1320 |
|
|
KAH-10 |
10/7.5 |
LP100×2 |
0.84 |
1.25(12.5) |
0.23 |
400 |
1554×650×1140 |
|
|
KAH-7.5 |
7.5/5.5 |
LP100×2 |
0.65 |
1.25(12.5) |
0.2 |
305 |
1490×560×1050 |
|
|
KAH-5.5 |
5.5/4 |
LP80×2 |
0.45 |
1.25(12.5) |
0.18 |
230 |
1425×560×105 |
|
Competitive Advantage:
A. Strongly power-driven and big airend with design, the air compressor owns bigger and heavier main parts than other products in the same trade with better selection and sufficient using of materials especially with main fittings, In addition ,it is more suitable to be applied in the continuous operation under heavy load for long working time ( 24 time) with reliability and longer lifespan.
B. Special designed is made in heat emission and air flow, which leads to low air-output temperature and low possibility of carbon deposit.
C. The piston ring imported from Japan is introduce in designing pistol ring , which is durable and sealable .
D. Crankshaft undergoes high-frequency hardening , which enables it especially abrasion-proof.
E. The core of air filter is made of imported filter paper, which acts well in filtering and absorbing noise. This protect health of human and the enviroment.
