3-Port Fiber Optic Circulator
- Payment Type:
- T/T
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 7 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shezhen |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 1000000 |
| Payment Type: | T/T |
| Transportation: | Air |

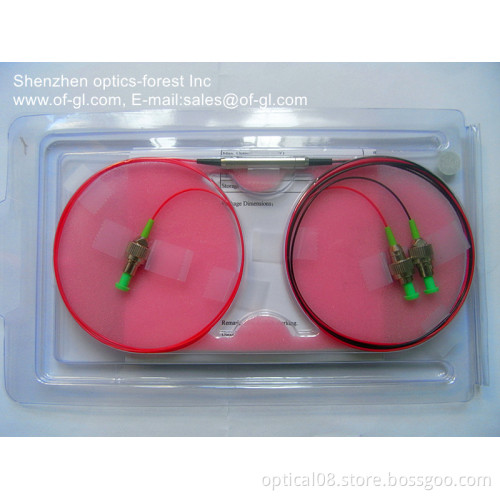

3-Port 1550/1310nm Polarization Insensitive Fiber Optic Circulator
|
Specifications |
||
|
Parameter |
Unit |
Value |
|
Center Wavelength |
nm |
1310 or 1550 |
|
Operating Wavelength Range |
nm |
±20 |
|
Min. Isolation at 23℃ |
dB |
45 |
|
Typ. Insertion loss |
dB |
0.7 |
|
Max. Insertion loss |
dB |
0.8 |
|
Min. Return loss |
dB |
55 |
|
Min. Cross talk |
dB |
50 |
|
Max. PDL |
dB |
0.1 |
|
Min. PMD |
ps |
0.1 |
|
Max. Optical Power (CW) |
mW |
500 |
|
Max. Tensile Load |
N |
5 |
|
Fiber Type |
- |
SMF-28e Fiber |
|
package dimensions |
mm |
Ф5.5*50 |
|
Operating Temperature |
°C |
-5 to +70 |
|
Storage Temperature |
°C |
-40 to +85 |
