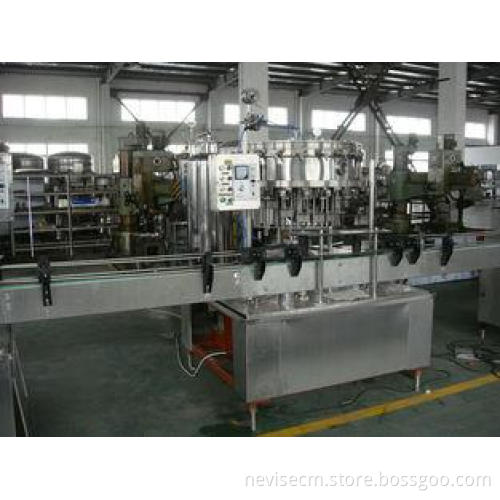

Linear Triple Carbonated Beverage Filling Machine , 8000bhp

1. Project Overview:

Depending on the configuration program, by the automatic bottle blowing machine blowing into the buffer bottle after a fight with a conveyor belt, the bottle Lifting to Unscrambler, then managers bottle neatly arranged after entering through the air conveyor washing, filling and capping three in one unit.

Triple unit into the bottle, rinse with ozone water, filling materials, after capping machine capping machine with conveyor sent outside after entering the packaging system.

In the post-packaging systems, first inkjet printer in a spray bottle production date and batch number on the bottle for Chit after treatment, with automatic labeling machine label and shrink sleeve label, after passing through the light inspection, with the automatic packing machine packing after artificial pallet, storage.

2. Device Configuration:

3. Triple filling machine 32-32-10:

1. Feature:

(1), the machine compact structure, perfect control system, easy operation, high degree of automation;
(2), transform bottle shape simply replace the cap portion of the star wheel, curved guide plate can be realized;
(3), and material contact parts are made of high quality stainless steel, no craft corner, easy to clean;
(4), using high-speed filling valve, level accuracy without liquid loss, ensure that the filling process requirements;
(5), capping head adopts constant torque magnetic device to ensure capping quality, and will not damage the cap;
(6), using an efficient management cover system, with perfect self-control and protection devices;
(7), with complete overload protection devices, can effectively protect the equipment and the safety of the operator;
(8), the control system has a production speed control, lack of cover detection, card counting bottles from the stop and yield function;
(9), the main electrical components and pneumatic components are world famous brand products;
(10), the whole operation with advanced touch-screen control, man-machine dialogue operation.

2)The main technical parameters:
