Ultra-filtration (UF) Water Treatment Equipments System for
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|

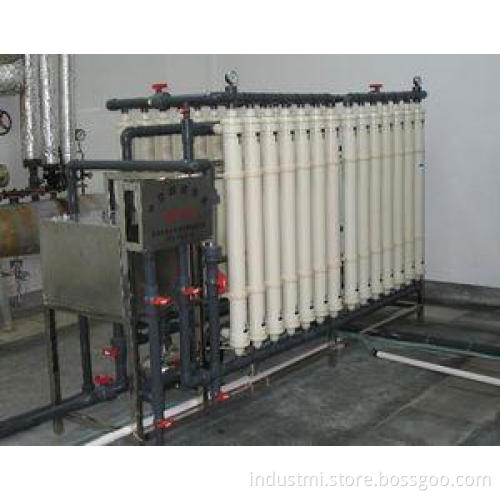

Ultra-filtration (UF) Water Treatment Equipments System for processing of mineral water
UF system is widely used in processing of mineral water, which features easy operation, less labor force and low running cost.
Specifications:
1,000L – 30,000L/hr
NO. | Machine name | Qty. |
1. | Raw Water Tank | 1 set |
2. | Raw Water Pump |
|
3. | Quartz sand filter | 1 set |
4. | Active carbon filter | 1 set |
5. | Sodium ion exchange | 1 set |
6. | Precision filter | 1 set |
7. | Ultra-filter | 1 set |
8. | Ozone generator | 1 set |
9. | Ozone mixer | 1 set |
10. | Pure water pump | 1 set |
11. | Pure water tank | 1 set |
12. | Piping and valves | 1 set |
Applications:
UF system is widely used in processing of mineral water, which features easy operation, less labor force and low running cost.
Composition of Water Treatment System
1.Pre-treatment System.
Pre-treatment system is composed of mechanical filter, active carbon filter and precision filter. The water temperature requires 25±3°C.
Mechanical filter can remove most of suspension, colloid and grain impurity, which can ensure initial purification of water.
2.UF system
UF system is composed of high-pressure pump, UF system and chemical cleaning device.
During running, UF membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of UF system.
High-pressure pump is the power source of UF system. To UF system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P≤0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and UF system will stop in avoidance of destroying to UF membrane because of water pressure.
UF system can wash surface of UF membrane by low-pressure timely and periodically.
