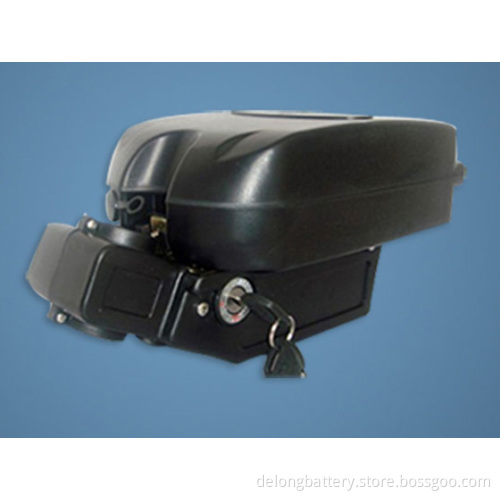

24V 10Ah electric kit lithium ion battery -small frog type

Electric bicycle battery 24V 10A ,elctric bike battery ,electric kit battery of small frog pet type

Description:

A.Features description :24V 10Aelectric bicycle battery of small frog type

Electric kit battery
1) Voltage:24V 10A or 36V 8A
2)Capacity:8-10Ah

3)Dimensions :L*W*T 240x147x78mm

4)Overcharge cut-off voltage:30V
5)Standard charge current :1.8A
6)Instant charge current :4.5A
7)Temperature range of battery charging:0~45℃

8)Over-discharge cut-off voltage :16V
9)Standard discharge current:5A
10)Max continuous discharge current :15A
11)Burst discharge current :40A
12)Discharge temperature scope :-20~45℃

13))Cycle life :more than 1000times cycle life

14)Application :with less than 150-250W motor

Product features :

15)) Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
16) Energy density per volume are higher : it can reach 227wh/L
17) Energy density per weight :80wh/Kg
18) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
19) With at least More than 1000times cycle life
20) It can run well under different temperature environment condition
21) No memory effects.
22)Suitable for electric bicycle ,electric bike etc .

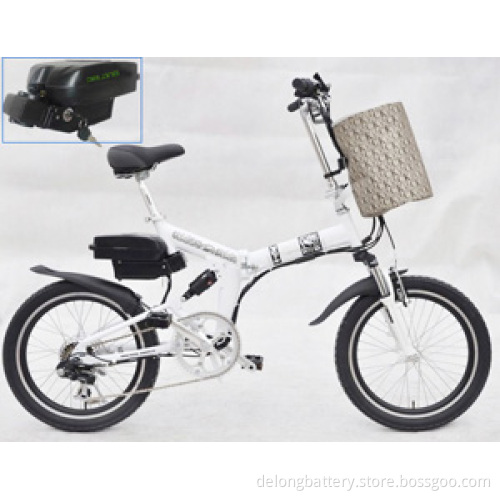

Structure and installation profess of our frog type electric kit battery
