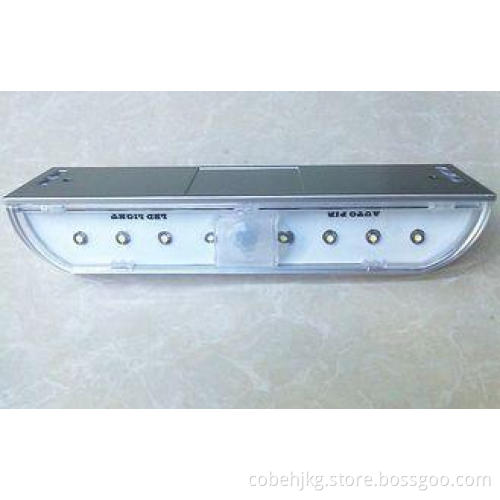

1 feet Led Cabinet Light 24v With Infrared Detection For At

Description

Adopt advanced LED technology with high efficiency and advanced Infrared detection sensor technology.

The whole circuit with optimized design, adopting material with high quality and high precision, is enjoying

a great popularity over the world.

Quick details

1.Adopting advanced LED technology: high efficiency, energy saving, environmental, long service time,

anti-explosive.
2.Adopting advanced Infrared detection sensor technology, highly sensitive, anti-disturbance, quick

response.
3. Automatic induction.
4. Delicate appearance design and it is light and fashionable.
5. Reasonable structural design, concealed fastening.


Specification

Induction form:Adopting double window, large diameter of famous infrared sensors

Induction control:The built-in light sensor, the temperature compensation device

Induction sensitive distance:>3m

Induction sensitive Angle: 120

Service time: above 80 thousand hours

Operating current:160Ma

Power supply: 2 AA battery or rechargeable battery

Delay shutdown time: 15second

Favorable temp & humidity: -5℃-38℃, 5%-93%
Dimension: 160*46*30mm(length*width*thickness)
Storage temp:-10℃-50℃
Weight: 90g (battery excluded)

Application

Doorway,stairway, stair, attic,inner room,The basement, garage, the cellar, wardrobe, hotel ambry

wardrobe ,

kitchen cupboards, bookcase, in-room safe, tents, car back box.

Packaging Details:

Box size: mm

Net weight:

Gross weight:

Carton size: CM

Gross weight: KG pcs / carton

Installing Method

Gluing with double faced adhesive tape
Screw fixation

Attentions

This light is internally installed light sensor,it is maybe unable to work in daylight, you can modify the

operating mode according to your need.

You are supposed to use the alkaline battery with high performance,such as 555 brand, NANFU,

GP and AAA rechargeable battery.

This light is not waterproof, and need not installed in any place with much rain, heavy humidity, and

low temp, very changeable light.

Sensor light should not be set beside the window, or any place with strong light environment.

Operating temp must be controlled between -5℃-40℃.
