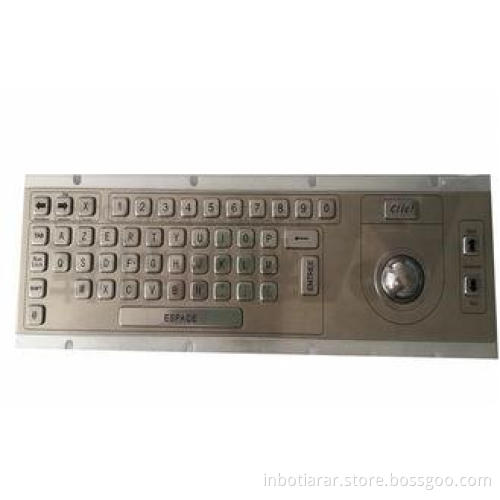

52 Key Industrial Keyboard With Trackball 38mm , Dust-proof

52 Key Industrial Keyboard With Trackball 38mm , Dust-proof NEMA4 , IK7

Quick Detail:

1. Stainless steel industrial keyboard

2. Waterproof, dust-proof and vandal resistant

3. CE,FCC,ROHS,IP65 certificate

4. USB or PS/2 interface

5. Customized layout

Features

52 keys metal keyboard with trackball

Water, dust and vandal resistant Etching and inking lettering

Brushed surface

Compatible with WINDOWS98/ME/2000/XP

Designed for public, outdoor, industrial and other extreme surroundings

Can be cleaned with soapy water, disinfectant or other cleaning agents

1 year warranty, can be upgrade longer

CE, RoHS, FCC approval

Dimension

Front panel: 385x105mm

Overall: 395x130mm

Trackball Dia.:38mm

Material

Front plate: 304# Stainless steel

Keycaps: 304# Stainless steel

Trackball: 304# Stainless steel

Back plate: Aluminum alloy

Mechanical

IP65

NEMA4, IK7

Key stroke travel: 2mm

Key actuation force: 120g/1.18N

Key durability: more than 1 million click times

Net weight: 1.2kg

Operation temperature: -10℃ to +50℃

Storage temperature: -30℃ to +80℃

Relative humidity: 30% to 95%

Atmospheric pressure: 50kPa to 110kPa

Electrical

Power input: +5V/DC, 10mA

EMC emission: EN55022(B)

Mechanical trackball resolution: X:>200dpi, Y: >190dpi

ESD resistant: 8kV by air contact, 5kV by direct contact

Free Options

Most language layout

USB and PS/2 interface

Upgrade Options

IP67 type

Extended operation temperature

Laser burnt lettering

Longer warranty

Applications:

Used for date input of Kiosks, Industrial platform, Banking, Medical, Gas pumping, Gaming machine and

Security equipment.

Specifications:

Competitive Advantage:

1. As a leader manufacturer since 1995,we have more than 10 years experience in such area.

2. All of our products are with strict QC testing to ensure high quality products for you.

3. With such a mass production, we can provide you the most competitive prices.
