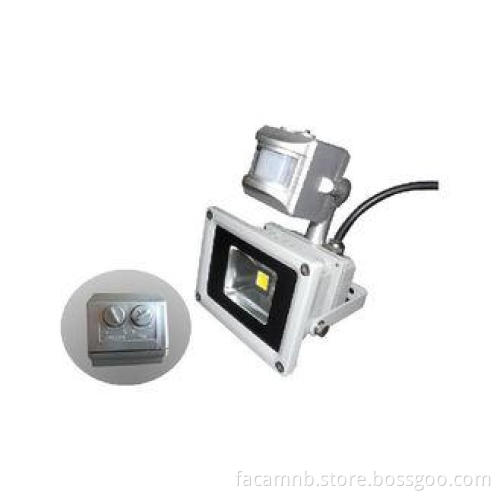

IP65 Waterproof PIR Sensor LED Flood Light 10W 50 Beam Angl
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
- Die-casting aluminum housing
- AC85~265V input options
- Optical grade diffused lens
- Graduated angle scale
- Bridgelux LED and Meanwell driver
- Low emitted heat
- 120º beam projection
- Up to 70% energy savings
- 10w power consumption
- IP65 Ingress protection
- CE, RoHS, compliant
- 3 Year Warranty
Specifications:
|
Tech Date |
|
|
|
Model |
RM-PIR10W |
|
|
LED Qty |
1pcs |
|
|
LED Type |
Bridgelux |
|
|
LED Power |
10W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC85~265V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
70~110LM/W |
|
|
Color Temperature |
WW |
2800-3200K |
|
PW |
4000-4500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>70 |
|
PW |
Ra>75 |
|
|
CW |
Ra>75 |
|
|
Lamp Efficiency |
>85% |
|
|
Lumens Output |
WW |
900lm |
|
PW |
950lm |
|
|
CW |
1000lm |
|
|
Beam Angle |
120° or 50° |
|
|
Working Temperature |
-40℃ ~ +55℃ |
|
|
Storage Temperature |
-25℃ ~ +65℃(25℃best) |
|
|
Life span |
>30000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
|
IP Grade |
IP65 |
|
|
Housing Color |
Silver or Black |
|
|
Net Weight |
2.3kgs |
|
|
Dimension |
115*150*85 mm |
|
|
package |
58*36*29cm (4pcs/box) G.W.: 12.5kgs |
|
Competitive Advantage:
- Health: Won't cause eye fatigue and helps to protect eye health.
- Safety: Won't do harm to body with no harmful substances such as mercury and lead.
- Color rendering: LEDs for floodlight applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
- Color temperature: From 2700K~6500K, customers can choose according to requirements.
- High quality: High power factor, constant voltage power supply and constant flux.
- Installation flexibility: Can be installed in any orientation with no restrictions.
Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
