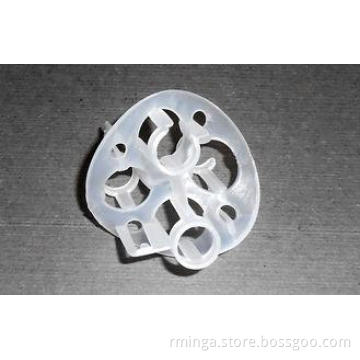

145mm PP / PVC Teller Rosette Ring , Heat Resistant Plastic
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
25mm,47mm,51mm,59mm,73mm 95mm 145mm Plastic Teller Rosette Ring ,Material For The PP.PE,RPP,PVC,CPVC,PVDF'
Quick Details:
1 .Professional Manufacturer
2. Favourable price
3. Short delivery time
4. ISO9001:2008
5.Free sample for test
6.Technical support
145mm PP / PVC Teller Rosette Ring , Heat Resistant Plastic Random Packing
Description:
Plastic Teller Rosette Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60°Cto 150°C.
Applications:
It is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Specifications:
Physical & chemical properties of plastic tower packing
|
Property //Material |
PE |
PP |
RPP |
PVC |
CPVC |
PVDF |
|
Density g/cm3 |
0.94-0.96 |
0.89-0.91 |
0.93-0.94 |
1.32-1.44 |
1.50-1.54 |
1.75-1.78 |
|
Application temperature℃ |
90 |
>100 |
>120 |
>60 |
>90 |
>150 |
|
Chemical corrosion resistance |
good |
good |
good |
good |
good |
good |
|
Compression Strength |
>6.0 |
>6.5 |
>7.0 |
>6.0 |
>8.0 |
>10.0 |
Geometric characteristic data
|
Type |
D*H*T mm |
Surface area m2/m3 |
Void volume m3/m3 |
Bulk Density kg/m3 |
Bulk number n/m3 |
|
Ф25 |
25×9×(1.5×2) |
269 |
0.86 |
128 |
17500 |
|
Ф47 |
47×19×(3×3) |
185 |
0.88 |
111 |
32500 |
|
Ф51 |
51×19×(3×3) |
180 |
0.89 |
103 |
25000 |
|
Ф59 |
59×19×(3×3) |
150 |
0.89 |
102 |
17500 |
|
Ф73 |
73×28×(3×4) |
127 |
0.89 |
102 |
8000 |
|
Ф95 |
95×37×(3×6) |
94 |
0.90 |
88 |
3600 |
|
Ф145 |
145×48×(3×6) |
65 |
0.95 |
47 |
1100 |
We can produce according to customer’s request.
shenzhen Rising Technology Co.,Ltd., is a professional production of reforming catalyst and alumina ceramic industrial company. we has the most experience and the exquisite technical experts and team both at home and abroad in the field of catalysts and industrial ceramic
production technology, has been in the domestic leading position in the product research and development, production process, test level.
Our main products are reformate refined catalyst, activated alumina, ceramic ball, random and structured chemical packing in ceramic, plastic tower packing, honeycomb ceramics, molecular sieves wear-resisting ceramic ball, wear-resisting alumina lining plate.
The company has the advanced materials handling system, strictly perfect raw material and product testing system, scientific first-class production process system, and customer service system , and the fulfillment of the operating principles of “ faithful , careful, efficient, and practical ,in the aspects of product research and development, production management, product quality stability.it get inside the highly recognized user .products are widely used in domestic chemical, oil refining, metallurgy, electric power, environmental protection industries
