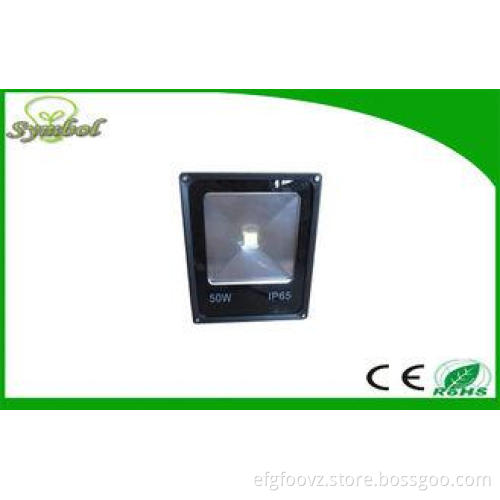

Brightness road IP65 Outdoor 12V Led Flood Lights 50W Pure
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|
Brightness Ultra Thin Waterproof Led Flood Lights 50W For Outdoor 12V
Quick Detail:
- Item Number: XBFL005-50W-B
- Power Supply Brand: shenzhen driver
- Type: LED Flood Lights
- Lamp Power (W): 50w
- LED Quantity: 1PC
- Input Voltage (V): AC85-265V / 50Hz—60Hz
- Produce Size: 285*235*150mm
- Inner Box Size: 294*240*154mm (1PC/Inner Box)
- Carton Box Size: 605*495*330mm(8PCS/Carton Box)
Description:
Made of proessional optical materials, the glass visible light transmittance is more than 96%, the surface reflected light decreased is less of 2%, hardness>+7H; temperature resistance: +200℃-40℃
Adopt high-quality and thickness die-casting aluminum housing for heat dissipation, fin heat sink on the back to enlarge the area of longer lifespan of the lamp, grey and black color heat sink for option.
Adopt Epistar 45mil COB led chip, large diameter double core to let big current going through, stable working, super brightness, low light fades and long lifespan.
Adopt isolated constant current driver with wide working voltage 85-265v, stable working and safety, used imported components, better in quality, longer lifespan.
Three-core insulative cable with diameter 7.5mm, core wire diameter 2.3mm, it is made of flame-retardent materials, waterproof, super soft, UV protect, anti-aging, anti-corrosion and heat resistance.
Applications:
Large-scale operations in mining, building outline, the stadium, overpasses, monuments, parks , flower beds and other outdoor lamps and lanterns.
Specifications :
|
Item Number |
XBFL005-50W-B |
|
|
Power Factor |
0.95 |
|
|
Power Efficiency |
＞95% |
|
|
Total Harmonic Distortion |
≤20%
|
|
|
LED Sources |
Epistar LED Chip
|
|
|
LED Power Consumption
|
50w |
|
|
Total Power Consumption
|
55w |
|
|
Lampshade Degree |
90/120 |
|
|
Luminous efficiency |
>100lm/w(bare LED)
|
|
|
Luminous Flux |
>4500lm
|
|
|
Light Distribution |
Symmetrical/Round Light Spot
|
|
|
Light Design |
LED+reflector |
|
|
LED Junction Temperature
|
≤80℃ |
|
|
WorkingTemperature |
-40℃~+45℃
|
|
|
IP rating |
IP65 |
|
|
Lifetime |
>50000Hrs |
|
|
Power line |
0.75mm² three-core wire
|
|
|
Wires |
L: live wire |
|
|
N: neutral wire |
||
|
E: Earth wire |
||
|
Color |
Cool white / Warm white / Natural white / Pure White/ Red / Green /Blue /Yellow |
|
|
Color Temperature |
Warm White
|
2700-3200K |
|
Pure White |
6000-6500K |
|
|
Cool White |
10000-12000K |
|
|
Color render index |
Warm White |
Ra＞85 |
|
Pure/Cool White |
Ra>75 |
|
|
LED initial luminous flux |
Warm White |
4350±3%lm |
|
Pure White |
4500±3%lm |
|
|
Cool White |
4450±3%lm |
|
|
Color of Housing |
Black and grey |
|
|
Warranty |
3Years |
|
|
Certifications |
CE,ROHS |
|
Competitive advantages:
- Quality +safety,The lamp bead is encapsulate by us. Quality guaranteed and reasonable price,also good heat dissipation function ,foot wattage.
- Super Slim design, elegant and compact size
- Super bright Epistar/Bridgelux chip as light source, low voltage constant current drive.
- Use the high thermal conductivity aluminum, surface electrostatic processed and sprayed with high heat dissipation material.
- Excellent heat emission, reasonable structure design, higher waterproof and dustproof effect.
- Lamp mounted by screws, easy installation and fixed firmly.
